         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA4116



Laser Systems:

Quantronix 116, 604, 416; Teradyne W419, W421, W429, W614, M118; Laser Identification System WaferMark II, 345, Softmark, LightWriter


Description:

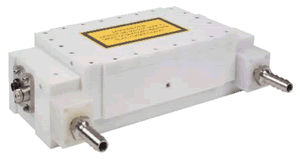

High Stability Single-Lamp Pumped Solid-State Laser Chamber used for precision marking, engraving and trimming applications in the semiconductor & microelectronics Industry.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

ASA116

Anode Socket Assembly

CSA116

Cathode Socket Assembly

D8822

DI Cartridge

LFT116

Lamp Flow Tube, Pyrex

ST116LLS

Laser Lamp, Extra Long Life, 600Hrs

PF30

Particle Filter



ASSEMBLIES

Item Part Number

Laser Rail

BA116

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA4116

Complete Head Block Assembly (Includes a 4mm Rod)

STBA4416

Head Block Assembly, Complete (Includes 4mm Rod)

GCA116

Gold Cavity Assembly, Complete

HBA116

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK4116

O-Ring Kit for 4mm Rod

YRA1164

YAG Rod Assy, Low Noise, 4mmx85mm, TEMoo

YRA4116

YAG Rod Assy, Low Noise, 4mmx85mm, TEMoo



NEW UP-GGRADE ASSAMBLIES

Item Part Number

Laser Rail

RFTA1164ENHA

YAG Rod Assembly Complete, Less 4mm YAG Rod

YRA1164

YAG Rod Assembly Complete, Fitted with new hardware yielding Low Noise and Enhanced Performance, 4mm x 85mm Rod

YRA416

YAG Rod Assembly Complete, Fitted with new hardware yielding Low Noise and Enhanced Performance, 4mm x 85mm Wedged Rod

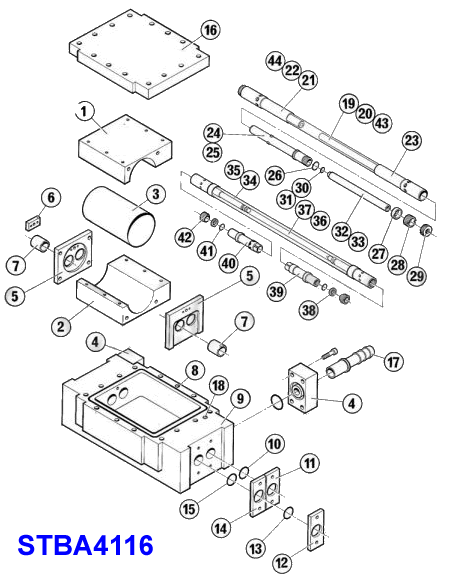

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

40

ASA116

Anode Socket Assembly

5

CEP114

Cavity End Plate

2

CH116B

Cavity Reflector Holder, Bottom

1

CH116T

Cavity Reflector Holder, Top

4

CM114

Coolant Manifold Required for Water Fittings

29

CN116

Crystal Nut

11

CPP114

Crystal Pressure Plate, Front

39

CSA116

Cathode Socket Assembly

3

GCE116

Gold Cavity Reflector

14

LEP114

Lamp End Plate

34

LFT116

Lamp Flow Tube

35

LFT116CE

Lamp Flow Tube, Cerium Doped Quartz

9

LHB116

Lower Head Block

36

ST116LL

Laser Lamp, Long Life, 400Hrs

37

ST116LLS

Laser Lamp, Extra Long Life, 600Hrs

12

LPP114

Lamp Pressure Plate, Front

7

LS116

Light Shield Sleeve

8

ORK4116

O-Ring, Silicone (Included in Kit)

31

ORK4116

O-Ring, Silicone 4mm

41

ORN804

O-Ring, Nirtile (10 PCES/PKT)

27

PR116

Pressure Ring

33

PT1164ENH

Pressure Tube, 4mm

38

PW149

Pressure Washer

23

RFT116ENH

Rod Flow Tube

28

RR116

Retaining Ring

42

THR150

Threaded Retainer

16

UHB116

Upper Head Block

17

WF033

Water Fitting for Coolant Manifold CM114

6

WIB116

Water Inlet Block

43

YR416

YAG Rod, 4mm Wedge, Unmounted, TEMoo

20

YR512

YAG Rod, 4mm, Unmounted, TEMoo

22

YRA1164

YAG Rod Assembly Complete, 4mm x 85mm, TEMoo, Low Noise

44

YRA416

YAG Rod Assembly Complete, 4mm x 85mm, Wedge, TEMoo

25

YRH1164ENH

YAG Rod Holder, 4mm Rod



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
