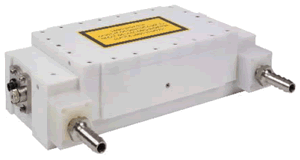

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA4114



Laser Systems:

Quantronix 114, 602, 603; Teradyne M118; Laser Identification Systems WaferMark I; Fox Labs


Description:
High Stability Single-Lamp Pumped Solid-State Laser Chamber used for precision marking & engraving in the Microelectronics & Semiconductor applications.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

ASA116

Anode Socket Assembly

CSA114

Cathode Socket Assembly

D8811

DI Cartridge

LFT116

Lamp Flow Tube, Pyrex

LFT116CE

Lamp Flow Tube, Ce doped quarts

ST114

Laser Lamp

PF30

Particle Filter



ASSEMBLIES

Item Part Number

Laser Rail

BA114

Head Block Assembly (Less Cavity Reflector, YAG Rod & Lamp Assemblies)

STBA3114

Complete Head Block Assembly (Includes 3mm Rod)

STBA4114

Complete Head Block Assembly (Includes 4mm Rod)

GCA114

Gold Cavity Assembly, Complete

HBA114

Head Block Assembly (Less YAG Rod & Lamp Assemblies)

ORK3114

O-Ring Kit for 3mm YAG Rod

ORK4114

O-Ring Kit for 4mm YAG Rod

RFTA3114

YAG Rod Assembly complete, Less 3mm Rod

RFTA4114

YAG Rod Assembly complete, Less 4mm Rod

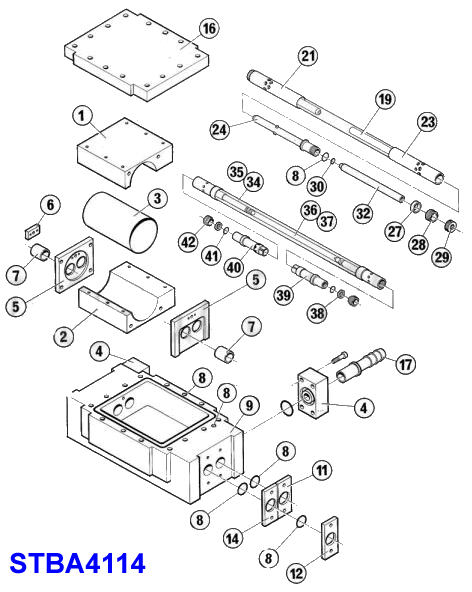

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

40

ASA116

Anode Socket Assembly

5

CEP114

Cavity End Plate

2

CH114B

Cavity Reflector Holder, Bottom

1

CH114T

Cavity Reflector Holder, Top

4

CM114

Coolant Manfold Required for Water Fittings

29

CN114

Crystal Nut

11

CPP114

Crystal Pressure Plate, Front

39

CSA114

Cathode Socket Assembly

3

GCE114

Gold Cavity Reflector

14

LEP114

Lamp End Plate

34

LFT116

Lamp Flow Tube

35

LFT116CE

Lamp Flow Tube, Cerium Doped Quartz

9

LHB116

Lower Head Block

36

ST114

Laser Lamp

12

LPP114

Lamp Pressure Plate, Front

7

LS114

Light Shield Sleeve

30

ORK3114

O-Ring Silicone, 3mm

8

ORK3114

O-Ring, Silicone (Included in Kit)

41

ORN804

O-Ring, Nitrile (10 PCES/PKT)

27

PR114

Pressure Ring

32

PT1143

Pressure Tube, 3mm Rod

32a

PT1144

Pressure Tube, 4mm Rod

38

PW149

Pressure Washer

23

RFT114

Rod Flow Tube

28

RR114

Retaining Ring

42

THR150

Threaded Retainer

16

UHB116

Upper Head Block

17

WF033

Water Fitting for Coolant Manifold CM114

6

WIB114

Water Inlet Block

19

YR369CC

YAG Rod, 3mm, Unmounted, TEMoo, Radius Ends

19a

YR469

YAG Rod, 4mm, Unmounted

21

YRA1143

YAG Rod Assembly, Complete, 3mm Rod, TEM00

21a

YRA1144

YAG Rod Assembly, Complete, 4mm Rod

24

YRH1143

YAG Rod Holder, 3mm

24a

YRH1144

YAG Rod Holder, 4mm



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
