Laser Systems:
Control Laser 400, 428, 438, 440-4, 440-8, 480-16,
Huffman, XMR, HDE& ACME Cleveland Systems, Laser Applications 94100

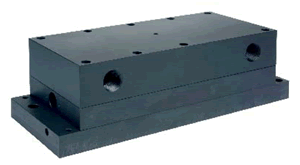

Description:
Dual-Lamp Pumped Solid-State pulsed Laser Chamber used for welding,
cutting and drilling applications.
FREQUENTLY USED CONSUMABLES
|
Item Part Number |
Description |
|
D8822 |
DI Cartridge |
|
FGFP400 |
Flow Plate, Filter Glass |
|
LC708 |
Lamp Connector Band, Gold |
|
ST400L |
Lamp, 4.625� Arc Length |
|
ST400S |
Lamp, 4� Arc Length |
|
MR3M100RHC |
Rear Mirror Mirror HR |
|
MR3M35RHC |
Front Mirror, 35% R |
ASSAMBLIES
|
Item Part Number |
Laser Rail |
|
BA400 |
Head Block Assembly (Less Cavity, YAG Rod, Lamp &
Carriage) |
|
STBA400 |
Head Block Assembly, Complete (Less Carriage) |
|
GC400 |
Gold Cavity Assembly, Complete |
|
HBA400 |
Head Block Assembly (Less YAG Rod, Lamp &
Carriage) |
|
ORK400 |
O-Ring Kit |

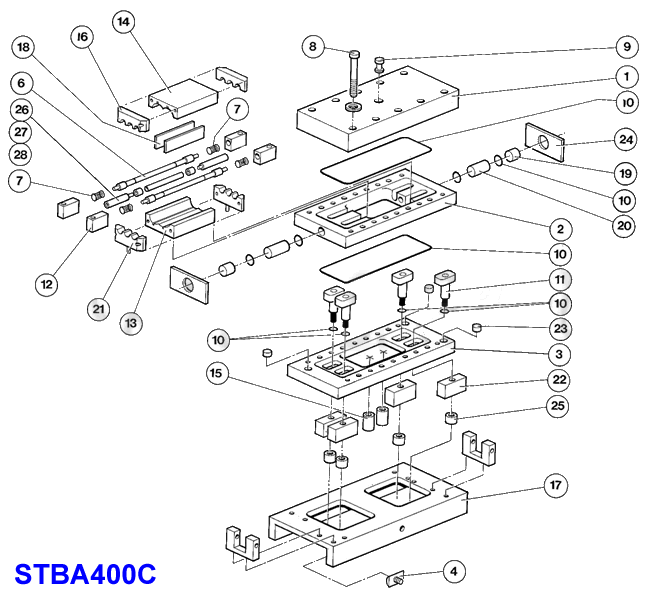

LASER HEADS COMPONENTS
|
Reference |
Item Part Number |
Laser Rail |
|
10 |
ORK400 |
O-Ring (Included in Kit) |
|
20 |
RG400 |
Rod Guide |
|
9 |
TC400 |
Trigger Contact |
|
15 |
TI400 |
Trigger Insulator |
|
1 |
UHB400 |
Upper Head Block |
|
26 |
YR400 |
YAG Rod, 3/8" Dia., Unmounted |
|
28 |
YRA400 |
YAG Rod Assembly, Mounted |
|
27 |
YRH400 |
YAG Rod Holder and Cap |
|
19 |
BE400 |
Bushing End |
|
24 |
BPP400 |
Bushing Pressure Plate |
|
21 |
CEP400L |
Cavity End Plate Lower, Gold Plated |
|
16 |
CEP400T |
Cavity End Plate, Gold Plated |
|
2 |
CHB400 |
Centre Head Block |
|
4 |
CLA500 |
Carriage Locking Assembly |
|
18 |
FGFP400 |
Filter Glass Flow Plate |
|
13 |
GCE400L |
Cavity Ellipse Lower, Gold Plated |
|
14 |
GCE400T |
Cavity Ellipse Top, Gold Plated |
|
8 |
HB400 |
Head Bolt, Stainless Steel |
|
25 |
IK400 |
Insulator Knob |
|
7 |
LC708 |
Lamp Connector Band, Gold |
|
12 |
LH400 |
Lamp Holder |
|
3 |
LHB400 |
Lower Head Block |
|
17 |
LHC400 |
Lower Head Carriage |
|
11 |
LHE400 |
Lamp Holder Extension |
|
6B |
ST400L |
Krypton Flashlamp, 4.625" Arc Length |
|
6A |
ST400S |
Krypton Flashlamp, 4.0" Arc Length |
|
23 |
LP400 |
Locking Plate |
|
22 |
MCB400 |
Mounting Bracket Cable |
|
