         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA342



Laser Systems:

Lasag KLS246-040FC



Description:
Single-Lamp Pumped pulsed Solid-State Laser Chamber used for cutting, drilling & welding.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

DIRESIN100

DI Resin

LFTKLS246

Lamp Flow Tube

ST1767, 64-0153

Lamp, Krypton

RFTKLS342

Rod Flow Tube



ASSAMBLIES

Item Part Number

Laser Rail

STBA342

Complete Head Block Assembly

GCA342

Gold Cavity Assembly

HBA342

Head Block Assembly (Less Rod and Lamp)

ORKLAK246

O-Ring Kit

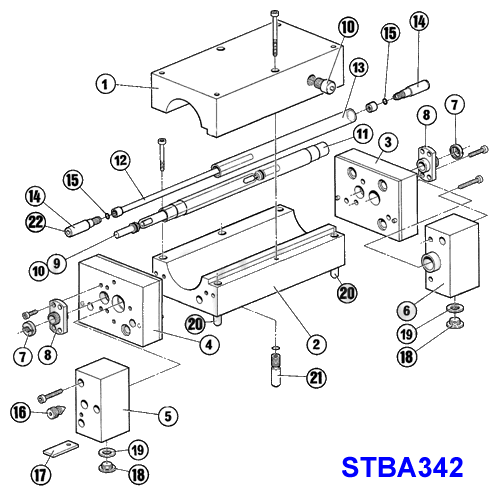

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

4

CEP342L

Cavity End Plate, Left

3

CEP342R

Cavity End Plate, Right

7

CNLAK301

Crystal Pressure Nut

8

CPPLAK301

Crystal Pressure Plate

2

GCE342L

Gold Cavity Reflector, Lower

1

GCE342U

Gold Cavity Reflector, Upper

16

HVT975

High Voltage Terminal

17

IP972

Insulation Plate

11

LFTKLS246

Lamp Flow Tube

9

ST1767

Laser Lamp, Krypton

20

LP968

Location Pin, Radiused

21

LP969

Location Pin, Flat

5

LPP342L

Lamp Pressure Plate, Left

6

LPP342R

Lamp Pressure Plate, Right

15

ORT4MM

O-Ring, Teflon 4mm Dia

18

PLUG973

Plug

13

RFTKLS342

Rod Flow Tube

19

W974

Washer, Neoprene

10

WRV978

Water Release Valve

12

YR4768

YAG Rod, 4mm Dia, Unmounted

22

YRA342

YAG Rod Assembly, 4mm dia, Mounted

14

YRH342

YAG Rod Holder, 4mm Dia



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
