         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA3117E



Laser Systems:

Bentzy Laser Systems



Description:
Single-Lamp Pumped Solid-State Laser Chamber used for diamond processing.







FREQUENTLY USED CONSUMABLES

Item Part Number

Description

CSA114 & CSA116

Cathode Socket Assembly

D150

DI Cartridge

LFT117CE

Lamp Flow Tube, Doped

ST749

Lamp

MR3M80RHC

Front Mirror 80% R

PF75

Particle Filter

Rear Mirror HR

Rear Mirror HR

RFT117ENHA

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

BA117

Head Block Assembly (Less Cavity Reflector, YAG Rod & Lamp Assembly)

STBA3117E

Complete Head Block Assembly (Includes 3mm Rod)

GCA117

Gold Cavity Assembly, Complete

HBA117E

Head Block Assembly (Less YAG Rod & Lamp Assembly)

ORK3117

O-Ring Kit for 3mm Rod

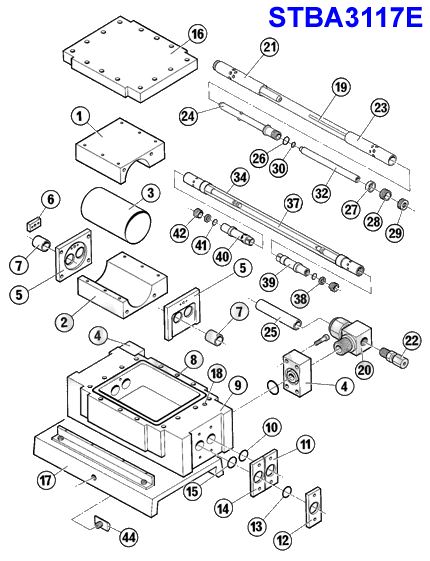

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

5

CEP114

Cavity End Plate

2

CH117B

Cavity Reflector, Bottom

1

CH117T

Cavity Reflector, Top

44

CLA500

Carriage Locking Assembly

4

CM114

Coolant Manifold Required for Water Fittings

29

CN117A

Crystal Nut

11

CPP114

Crystal Pressure Plate, Front

39

CSA114

Cathode Socket Assembly

40

CSA116

Cathode Socket Assembly

3

GCE117

Gold Cavity Reflector

14

LEP114

Lamp End Plate

34

LFT117

Lamp Flow Tube, Pyrex

35

LFT117CE

Lamp Flow Tube, Cerium Doped Quartz

9

LHB117

Lower Head Block

17

LHC5117

Lower Head Carraige

36

ST117LL

Laser Lamp, Long Life 400 Hrs

37

ST749

Laser Lamp, Extra Long Life 600 Hrs

12

LPP114

Lamp Pressure Plate, Front

7

LS117

Light Shield Sleeve

18

ORK3117

O-Ring, Silicone (Included in Kit)

41

ORN804

O-Ring Nitrile (10PCES/PKT)

30

ORS3MM

O-Ring Silicone, 3mm

27

PR116

Pressure Ring

32

PT1173ENHA

Pressure Tube, 3mm

38

PW149

Pressure Washer

23

RFT117ENHA

Rod Flow Tube, Low Noise

28

RR116

Retaining Ring

8

SEE KIT

O-Ring, Silicone (Included in Kit)

42

THR150

Threaded Retainer

16

UHB117

Upper Head Block

6

WIB117

Water Inlet Block

19

YR1173A

YAG Rod, 3mm, Unmounted, TEMoo

21

YRA1173ENHA

YAG Rod Assembly Complete, 3mm Rod, TEMoo, Enhanced, Low Noise

24

YRH1173ENHA

YAG Rod Holder, 3mm Rod



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
