         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA3117



Laser Systems:

Quantronix 117, 117E; Excalibur XLS572; Orziv 2001; TLT 2400; Configured for TEMoo mode.

Description:
Single-Lamp Pumped Solid-State Laser Chamber used for precision material processing applications such as diamond sawing, cutting, bruting, shaping, kerfing and marking



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

ASA116

Anode Socket Assembly

CSA116

Cathode Socket Assembly

D8822

DI Cartridge

LFT117

Lamp Flow Tube, Pyrex

LFT117CE

Lamp Flow Tube, Ce doped quartz

ST117LL

Laser Lamp, Long life, 400Hrs

ST749

Laser Lamp, Extra Long Life, 600Hrs

MR2M100RHC, HR

Rear Mirror

MR2M80RHC, 80%

Front Mirror

PF30

Particle Filter



ASSEMBLIES

Item Part Number

Laser Rail

BA117

Head Block Assembly (Less Cavity Reflector, YAG Rod & Lamp Assembly)

STBA3117

Complete Head Block Assembly (Includes 3mm Rod)

GCA117

Gold Cavity Assembly, Complete

HBA117

Head Block Assembly (Less YAG Rod & Lamp Assembly)

ORK3117

O-Ring Kit for 3mm Rod



NEW UP-GGRADE ASSAMBLIES

Item Part Number

Laser Rail

RFTA1173ENHA

YAG Rod Assembly Complete, Less 3mm YAG Rod

YRA1173

YAG Rod Assembly Complete, Fitted with new hardware yielding Low Noise and Enhanced Performance, 3mm x 108mm YAG Rod



LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

40

ASA116

Anode Socket Assembly

5

CEP114

Cavity End Plate

2

CH117B

Cavity Reflector, Bottom

1

CH117T

Cavity Reflector, Top

4

CM114

Coolant Manifold Required for Water Fittings

29

CN117

Crystal Nut

11

CPP114

Crystal Pressure Plate, Front

39

CSA116

Cathode Socket Assembly

3

GCE117

Gold Cavity Reflector

14

LEP114

Lamp End Plate

34

LFT117

Lamp Flow Tube, Pyrex

35

LFT117CE

Lamp Flow Tube, Cerium Doped Quartz

9

LHB117

Lower Head Block

36

ST117LL

Laser Lamp, Long Life 400 Hrs

37

ST749

Laser Lamp, Extra Long Life 600 Hrs

12

LPP114

Lamp Pressure Plate, Front

7

LS117

Light Shield Sleeve

41

ORN804

O-Ring Nitrile (10PCES/PKT)

30

ORS3MM

O-Ring Silicone, 3mm

27

PR116

Pressure Ring

32

PT1173

Pressure Tube, 3mm

38

PW149

Pressure Washer

23

RFT117

Rod Flow Tube

28

RR116

Retaining Ring

8

SEE KIT

O-Ring, Silicone (Included in Kit)

42

THR150

Threaded Retainer

16

UHB117

Upper Head Block

17

WF033

Water Fitting for Coolant Manifold CM114

6

WIB117

Water Inlet Block

19

YR1173B

YAG Rod, 3mm, Unmounted, TEMoo

21

YRA1173

YAG Rod Assembly Complete, 3mm Rod, TEMoo, Enhanced, Low Noise

24

YRH1173

YAG Rod Holder, 3mm Rod

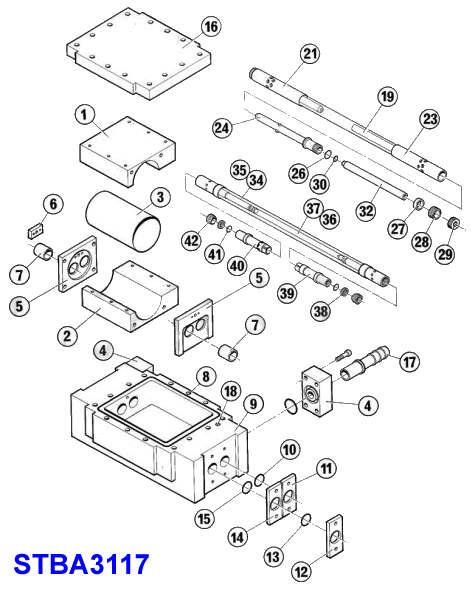

  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
