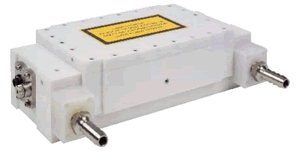

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA3116



Laser Systems:

Quantronix 116, 604, 416; Teradyne W419, W421, W429, W614, M118; Laser Identification System WaferMark II, 345, Softmark, LightWriter


Description:
High Stability Single-Lamp Pumped Solid-State Laser Chamber used for precision marking, engraving and trimming applications in the semiconductor and microelectronics Industry.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

ASA116 & CSA116

Anode and Cathode Socket Assembly

D8822

DI Cartridge

LFT116

Lamp Flow Tube, Pyrex

LFT116CE

Lamp Flow Tube, Ce doped Quartz

ST116LL

Laser Lamp, Long Life, 400Hrs

ST116LLS

Laser lamp, Extra Long Life, 600Hrs

PF30

Particle Filter



ASSAMBLIES

Item Part Number

Laser Rail

BA114

Head Block Assembly (Less Cavity, YAG Rod and Lamp Assembly)

STBA3116

Head Block Assembly, Complete, (Includes 3mm Rod)

GCA116

Gold Cavity Assembly, Complete

HBA116

Head Block Assembly (Less YAG Rod and Lamp Assembly)

ORK3116

O-Ring Kit for 3mm Rod



NEW UP-GGRADE ASSAMBLIES

Item Part Number

Laser Rail

RFTA1163ENH

YAG Rod Assembly Complete, Less 3mm YAG Rod

YRA1163

YAG Rod Assembly Complete, Fitted with new hardware yielding Low Noise and Enhanced Performance, 3mm x 85mm Rod

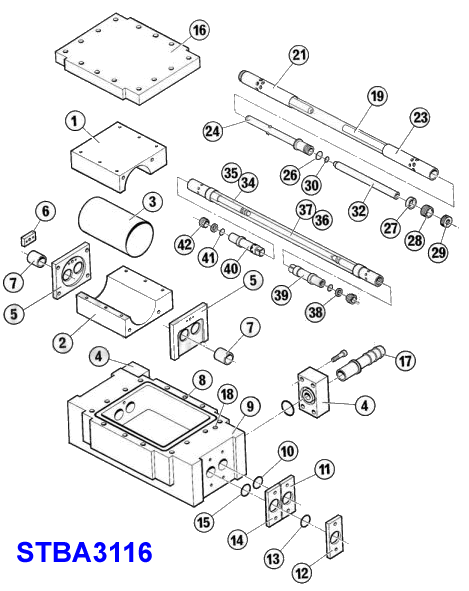

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

40

ASA116

Anode Socket Assembly

5

CEP114

Cavity End Plate

2

CH116B

Cavity Reflector Holder, Bottom

1

CH116T

Cavity Reflector Holder, Top



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
