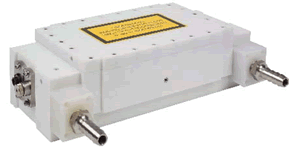

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA118CC



Laser Systems: Quantronix 118 Close Coupled, 350W


Description:
Single-Lamp Pumped Solid-State Laser Chamber used for precision cutting, annealing and welding.





FREQUENTLY USED CONSUMABLES

Item Part Number

Description

ASA116

Anode Socket Assembly

CSA116

Cathode Socket Assembly

D8811

DI Cartridge

LFT118

Lamp Flow Tube, Pyrex

LFT118CE

Lamp Flow Tube, ce doped Quartz

ST118

Laser Lamp

PF30

Particle Filter



ASSAMBLIES

Item Part Number

Laser Rail

BA118

Head Block Assembly (Less Cavity Reflector, YAG Rod & Lamp Assemblies)

STBA118CC

Complete Head Block Assembly (Includes 7mm Rod)

GCA118CC

Gold Cavity Assembly, Complete

HBA118CC

Head Block Assembly (Less YAG Rod & Lamp Assemblies)

ORK118

O-Ring Kit

YRA118

YAG Rod Assembly, Complete, 7mm x 147mm

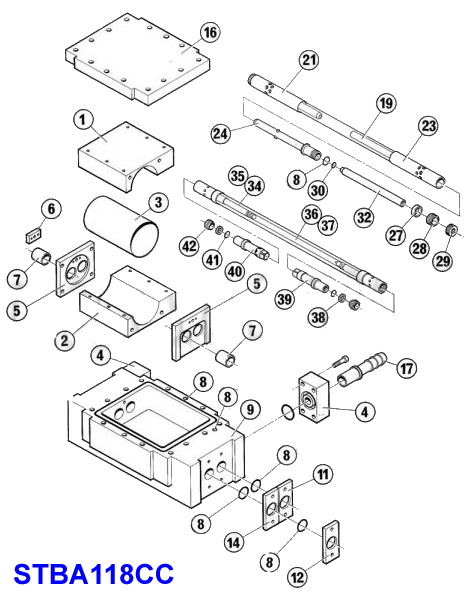

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

40

ASA116

Anode Socket Assembly

5

CEP118CC

Cavity End Plate

2

CH118BCC

Cavity Reflector Holdter, Bottom

1

CH118TCC

Cavity Reflector Holder, Top

4

CM114

Coolant Manifold Required For Nylon Water Fittings

29

CN114

Crystal Nut

11

CPP114

Crystal Pressure Plate, Front

39

CSA116

Cathode Socket Assembly

3

GCE118CC

Gold Cavity Reflector

14

LEP114

Lamp End Plate

34

LFT118

Lamp Flow Tube

35

LFT118CE

Lamp Flow Tube, Cerium Doped Quartz

9

LHB118CC

Lower Head Block

36

ST118

Laser Lamp

12

LPP114

Lamp Pressure Plate, Front

7

LS118/LS118A

Light hsield Sleeve (2 Required)

8

ORK118

O-Ring, Silicone (Included in Kit)

30

ORK118

O-Ring, Silicone, 7mm

41

ORN804

O-Ring Nitrile (10 PCES/PKT)

27

PR116

Pressure Ring

32

PT118

Pressure Tube

38

PW149

Pressure Washer

23

RFT118

Rod Flow Tube

28

RR116

Retaining Ring

42

THR150

Threaded Retainer

16

UHB117

Upper Head Block

17

WF033

Water Fitting, Stainless Steel

19

YR118

YAG Rod, 7mm, Unmounted

21

YRA118

YAG Rod Assembly, Complete, 7mm YAG Rod

24

YRH118

YAG Rod Holder



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
