Features
Structure: Diode pumped solid-state green lasers.
Lasing
wavelength: 532nm
Output
power: <5mW
Operating
temperature:15~35℃

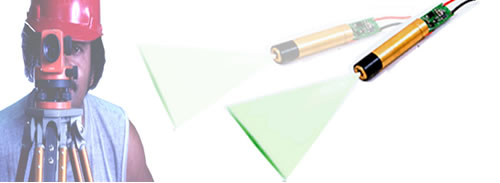

Applications
Leveler
Used in
green laser pointer
Absolute
maximum ratings (GLM-05)
|
Parameter |
Rating |
Unit |
|
Supply voltage |
+3.5 |
V |
|
Input signal voltage |
- |
V |
|
Operating temperature |
15
~35 |
℃ |
|
Storage temperature |
0~
+50 |
℃ |
Specifications (GLM-05)
|
Parameter |
Condition |
Min |
Typ |
Max |
Unit |
|
Wavelength |
|
- |
532 |
- |
nm |
|
Output power |
|
2 |
3.7 |
4.5 |
mW |
|
Power stability |
Topr=15 ~ +35℃ |
-10 |
|
+10 |
% |
|
Beam divergence |
|
- |
1.52 |
- |
mrad |
Description
of Model Number: GLM-XX-Y-Z-BW
GLM
– green laser module
XX - maximum output laser power

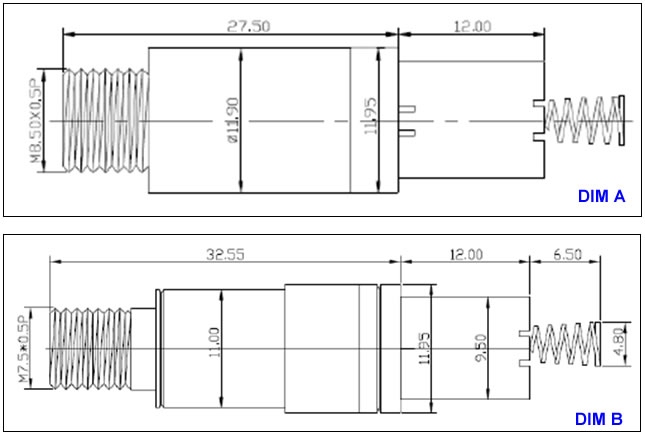

Y - Pack dimension, DIM A or DIM B

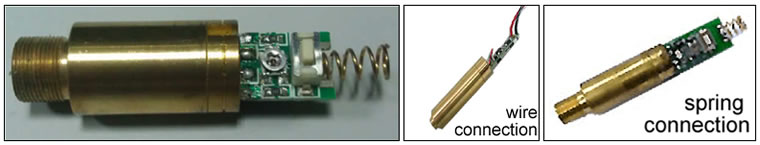

Z - wire connection type, S (spring) or W (wire)
BW - BW means a button switch assembled into the
module.
Example:
GLM-05-A-W: green laser module, maximum 5mW, outlook is DIM A, wire
connection.
GLM-05-B-S: green laser module, maximum 5mW, outlook is DIM B, spring
connection.
Remark: If the green laser modules are to be used in green laser
pointers, a button switch will be assembled into the modules.
Line
Green Laser Module
-Green Laser Module - Line Beam
-Output power:< 5mW , < 1mW
-Wavelength:532nm
-Output mode: CW
-Beam Quality:TEM00
-Operation Temperature:15 ~ 35 oC
-Input Voltage:3VDC
-Beam Divergence:< 1.0 mrad
-Operating Current:< 300 mA
-Storage Temperature: 0 ~ 50 oC
-Output Angle: 110 +/-5o
-The above specification might be change without advance
notice
 |
