          Fiber Optics Inspection and Cleaning Kits

Fiber Optic Connector Inspection

Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

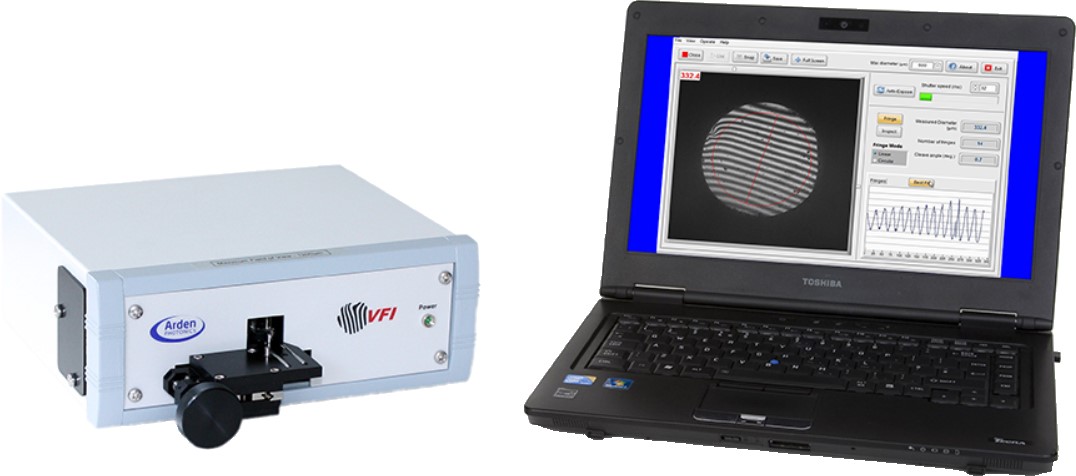

ST-IIS Interferometric Inspection System

The interferometric inspection system (ST-IIS-xxxx) specifically designed for checking the surface quality and flatness of your cleaved or polished fibers. The interferometer has proved itself in Research, Production and QA over and over and the feedback we get from users indicates that they value these features:


Features & Benefits

  • 3 different fields, depending on the application

  • Arden, Vytran, Fujikura/AFL, Furukawa/FITEL, and PK holders

  • End angle/radius of curvature estimation

  • Inspect and Fringe modes

  • Flat and angled ends

  • User calibration facility

Applications

  • Precision cleaver manufacture

  • Cleaver maintenance

  • Laser manufacture

  • Medical device manufacturing

  • Fiber R&D

  • Development and testing of angled cleaves and cleavers

  • Device pig tailing

  • LDF cleaver manufacturer/maintenance

  • Fiber ribbon inspection

  • Fiber end cap manufacture

Specifications



ST-IIS-1200

ST-IIS-200

Field of View

1200um maximum with x1.5, x2, x3, and x6 digital zoom

200um

Dimensions

240mm(W)x240mm(D)x90mm(H)

240mm(W)x240mm(D)x90mm(H)

Weight

2.0kg

2.0kg

Power Supply

12V in-line power supply

12V in-line power supply

Resolution

Max resolution 1920x1920 pixels

1280x1024 pixels

Image Format

8bit JPG

8bit JPG

Accuracy

<0.1o

<0.1o

Connection to computer

USB 2.0 (USB B to USB A: 2m cable supplied)

USB 2.0 (USB B to USB A: 2m cable supplied)

Environmental

Operating Temp.

0oC to + 50oC

0oC to + 50oC

Humidity

5%- 95% relative, non-condensing

5%- 95% relative, non-condensing

Computer Requirements

Operating systems

Windows7 32bit or 64bit; Win8 32bit or 64bit

Hardware

2GB RAM; USB 2.0 port � NOTE: system may not work with USB3.0

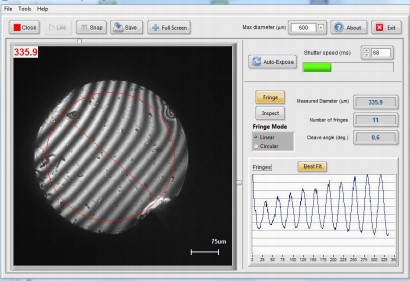

Flexible software
The ST-IIS comes with an efficient software package containing controls to switch between fringe and inspect mode built in. It also allows users to grab and save images for later use. The report generator enables users to include up to 20 cleave images in one report along with comments. Other features include � intensity line profile, intensity histogram, auto-optimization of intensity, end angle estimation, radius of curvature estimation, psuedo-color rendering and review of stored images.

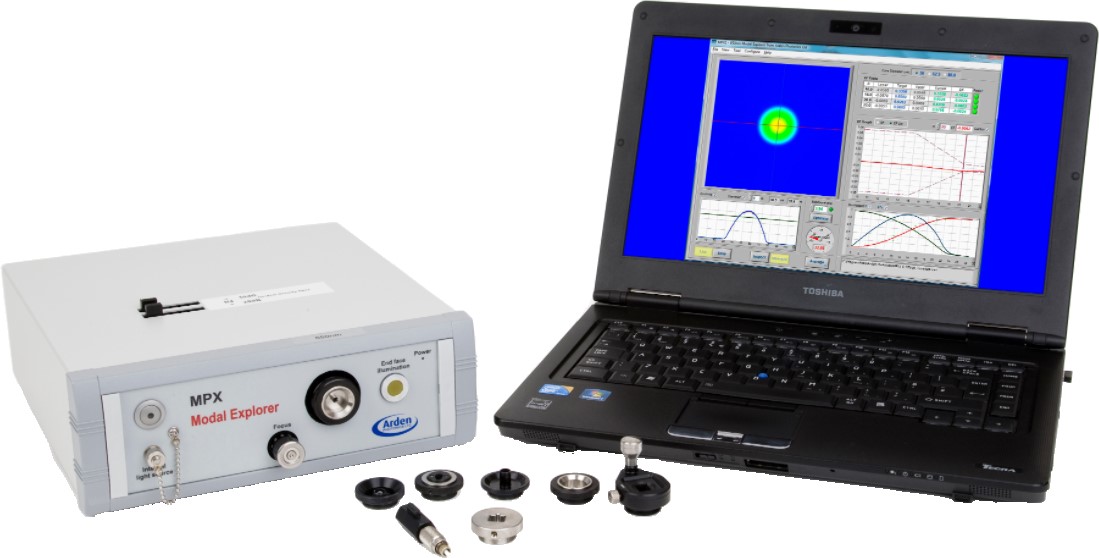

ST-MPX Encircled flux meter

Encircled Flux is now widely accepted as the preferred way to specify modal filling by IEEE, TIA and IEC. Measurement of Encircled Flux is defined in FOTP-203 � the �Modal Explorer� is the most standards-compliant measurement system available today and has been chosen by major standards labs in the USA and Europe as the basis for their critical measurements

Its compact size and solid design make it the tool of choice in cable makers, fiber optic instrument companies and VCSEL, laser and LED source makers. In use in factories every day, major players in the industry rely on the Modal Explorer. The Modal Explorer is available for measurements at 850 and 1300nm as well as other custom wavelengths. Modal Explorer makes measurement of Encircled Flux easy and accurate, and it complies with international standards.

But if you are measuring laser-based transmission light sources for multi-mode systems you may need to use a test jumper assembly and fiber shaker in order to avoid �speckle�. Industry standards, for example IEEE 802.3aq and FOTP�203, call for the use of a mechanical fiber shaker. The Fiber Shaker (ST-MPX-SR3 option) reduces speckle by changing the differential path length of the modes in the fiber. The fiber is shaken continuously to allow the speckle to be averaged out. This will ensure sufficient repeatability for the measurement of the Encircled Flux


Features & Benefits

  • End face inspection mode with focus indicator to give better repeatability from operator to operator

  • Power monitor - optimize light throughput and modal conditions simultaneously

  • Real-time measurement - adjust modal conditions easily as well as increase productivity

  • Internal LED with fully filled launch condition

  • USB2.0 connection gives portability - with the optional carrying case plus a laptop computer

  • Optional geometrical calibration artefact to enable user calibration of MPX


Applications

  • Source and patchcord characterization for IEC11801 and TIA/EIA568 LAN testing

  • VCSEL characterization for Gigabit Ethernet IEEE 802.3

  • Mode-scrambler and mode-filter characterization

  • Connector inspection n Measure sources to IEC 61280-4-1

  • Alignment of pig-tailed light sources


Specifications



ST-MPX-1

ST-MPX-2

Wavelength

850nm (Encircled Flux measurement range is from 400nm to 1100nm but End Face Inspecton and Focussing is at 850nm)

1300nm (Encircled Flux measurement range is from 900nm to 1700nm but End Face Inspecton and Focussing is at 1300nm)

Size

260mm(W)x270mm(D)x90mm(H)

10�(W)x10.5�(D)x3.5�(H)

260mm(W)x390mm(D)x110mm(H)

10�(W)x15�(D)x4.5�(H)

Weight

2.5kg / 5.5lb

7.0kg / 15.5lb

Dynamic Range

60dB

>60dB

Image Sensor

CCD array, 12 bit, 4.65um square pixels

InGaAs array, 12 bit, 30um square pixels

Maximum Core Diameter

100um

100um

Maximum source power

Approx 10mW (depends on power density, fiber type etc.)

Approx 10mW (depends on power density, fiber type etc.)

Input connector adaptors available

Universal 2.5mm ferrule; LC (both supplied as standard), FC, ST,SC,MTP,Bare fiber (optional)

Universal 2.5mm ferrule; LC (both supplied as standard), FC, ST,SC,MTP,Bare fiber (optional)

End Face Inspection and Focussing

850nm LED

1300nm LED

Built0in reference source

850nm LED, FC connector, over-filled (110um core diameter,; 0.37NA)

1300nm LED, FC connector, over-filled (110um core diameter,; 0.37NA)

Power

External switched mode power supply (supplied)

External switched mode power supply (supplied)

Connection to Computer

USB 2.0 (USB B to USB A: 2m cable supplied)

USB 2.0 (USB B to USB A: 3m cable supplied)

Computer Requirements (minimum)

1.5GHz or higher processor, 1GB RAM; USB 2.0 port � note system will not work with USB 1.1 or below

1.5GHz or higher processor, 1GB RAM; USB 2.0 port � note system will not work with USB 1.1 or below

Operating System supported

Windows 7/8 32bit or 64bit, Windows XP SP3

Windows 7/8 32bit or 64bit, Windows XP SP3

Operating Temperature

0oC to + 50oC

0oC to + 50oC

Humidity

5%- 95% relative, non-condensing

5%- 95% relative, non-condensing

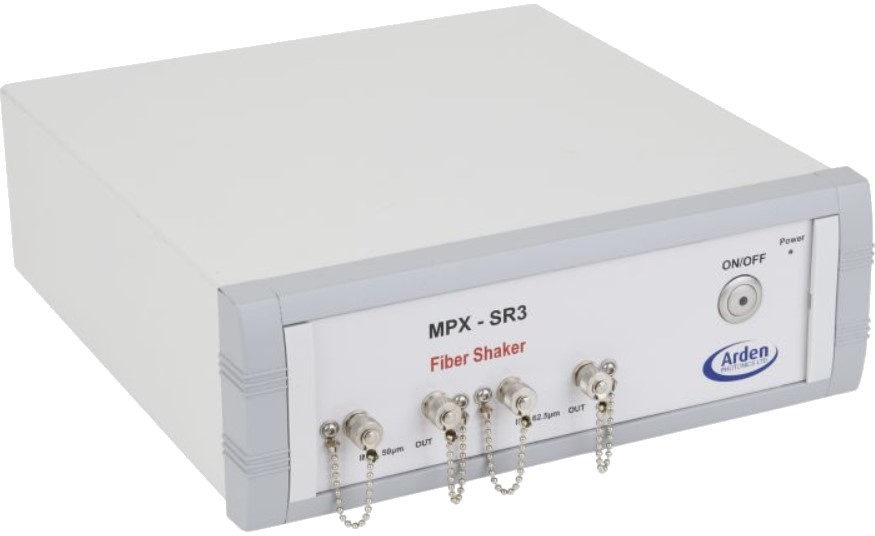

ST-MPX-SR3 Fiber Shaker

The ST-MPX-SR3 Fiber Shaker reduces speckle by changing the differential path length of the various modes in the fiber. The fiber is shaken continuously during the measurement to allow the speckle to be averaged out. This will ensure sufficient repeatability for the measurement of the Encircled Flux.

The ST-MPX-SR3 Fiber Shaker has two channels. One channel contains OM1 (62.5/125 �m Graded Index fiber) and the other OM2 (50/125 �m Graded Index fiber). Each channel has an input and output port fitted with FC/PC connectors as standard.

Features

  • Small size

  • Dual fiber inputs: OM1 and Om2

  • Low noise

  • Light weight

  • Shake frequency at 10Hz

Specification

Fiber types

OM1 (62.5/125 GI) and OM2 (50/125 GI)

Input & Output Connectors

FC/PC

Frequency of shaking

10Hz

Insertion loss

<1dB

Size

260mm(W)x270mm(D)x90mm(H)

Weight

1.9kg

Power

External switched mode power supply. Requirements: 90-240V, <500mA, <50W

Operating Temperature

+5oC to +40oC

Storage Temperature

-10oC to +50oC

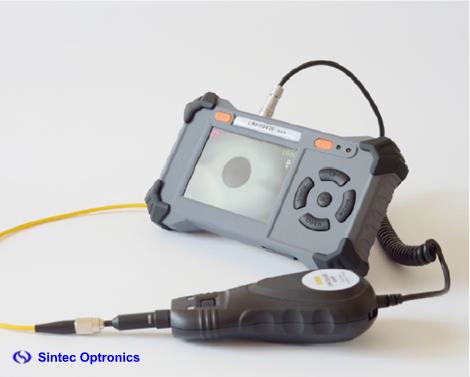

Fiber Optic Connector Inspection device (portable)

The Fiber Optic Connector Inspection is an intelligent handheld video microscope suitable for inspection of patch cords, bulkhead receptacles and a variety of connectors found in fiber optic communication systems.

         3.5-inch TFT color display

         Well-centered, high resolution image

         Image capture and storage

         Instant video recording

         250/200x Magnification

         4x Digital zoom

         Standard tips (SC, FC, ST, LC, MU, E2000)

         USB plug-and-play

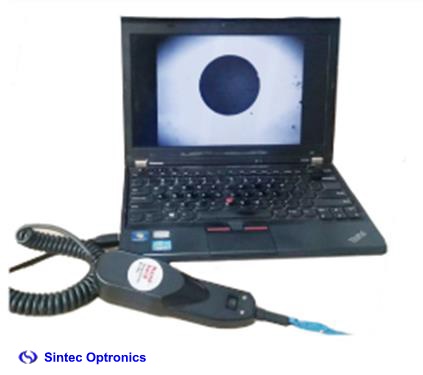

Fiber Optic Connector Inspection device (USB)

The Fiber Optic Connector Inspection is an intelligent handheld video microscope suitable for inspection of patch cords, bulkhead receptacles and a variety of connectors found in fiber optic communication systems.

         Plug and Play capability

         Device Driver not required

         Supports Usb 1.1/2.0

        Compatible with all current versions of Windows

        Well-centered, high resolution image

         400/250/200X Magnification

         Standard tips (SC, FC, ST, LC, MU, E2000)



Specification

Mainframe

Display 3.5� TFT-LCD, 320 x 240 pixels
Dimensions 170mm x 100mm x 40mm
Weigh(including battery) 200g
Power Supply Replaceable battery or universal input 5V DC adapter
Battery Rechargeable Li-Ion, 3.7V / 1450mAh
Battery life > 3 hours (continuous)
Charger/AC adapter US, EU, UK and Australian versions available
Image / Video Storage 8GB SD card
Operating Temperature -20�C to 50�C
Storage Temperature -30�C to 70�C
Inspection Probe
Magnification 400X (9� monitor); 250/200x (3.5�monitor)
Detection Limit 0.5μm
Focus Control Manual , in-probe
Principle Bright field reflected light microscopy
Dimensions 180mm x 40mm x 30mm
Weight 200g



Package Contents

Standard Accessories
Inspection Probe x1
Mainframe x1
AC power adapter/battery charger x1
Rechargeable battery pack x1
2.5mm tip for PC male connectors x1
1.25mm tip for PC male connectors x1
Tip for SC / FC PC female connectors x1
Tip for LC PC female connectors x1
Tip box x1
User Manual x1
Carrying case x1
Optional Accessories
2.5mm tip for APC male connectors x1
1.25mm tip for APC male connectors x1
Tip for SC APC female connectors x1
Tip for FC APC female connectors x1

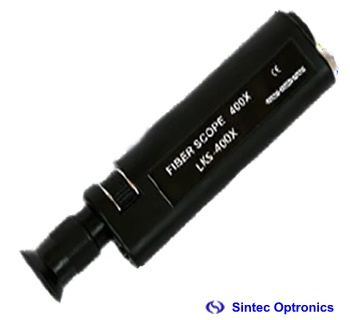

400x Handheld Optical Inspection Scope

The fiber optic microscope utilizes a white light LED for coaxial illumination. Light is introduced into the optical path (axis) so that it comes out the tip of the objective lens and strikes the ferrule perpendicular to the end face. This method of illumination produces a high level of resolution providing excellent detail of scratches and contamination.
Battery source:3*AAA batteries
Controls: momentary on/off switch for light source and fine force control wheel

Option Adapter:

         2.5mm APC Univesal Adapter(Used for SC/APC, FC/APC, ST/APC)

         1.25mm LC/APC connector adapter

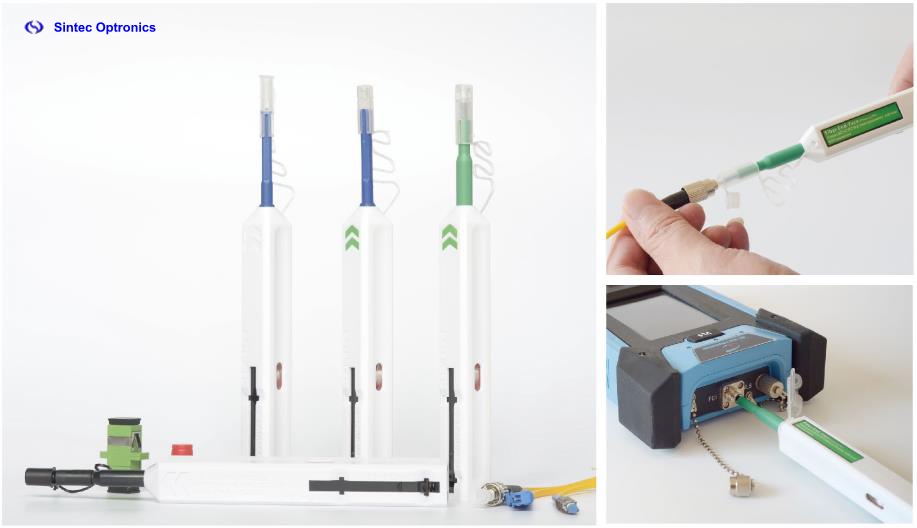

Fiber Optic Cleaner Pen

Fiber Optic Cleaner Pen is designed to specially work well with the female connectors, this instrument cleans the ferrule end faces removing dust, oil, and other debris without nicking or scratching the end face.

Features:

         Disposable with 800+ cleanings per unit

         Easy pushing motion engages connector and initiates cleaner

         Made from anti-static resins

         Cleaning micro fibers are densely stranded and debris free

         Extendable tip reaches recessed connectors

Ordering:

         FC/SC/ST Cleaner Pen, universal 2.5mm;

         LC/MU Cleaner Pen, universal 1.25mm.

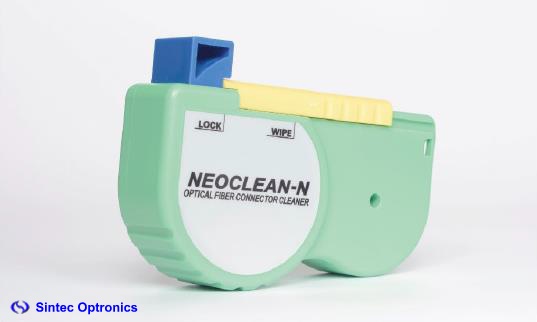

Fiber Optic Cleaner

Fiber Optic Cleaner cleans the end faces removing dust, oil, and other debris without nicking or scratching the end face.

Features:

         Efficient and easy to use

         Delivers consistently high quality cleaning performance

         Lightweight and safe to use

         Anti-static resin is used

Specification

Product Name Neoclean-N
Connector SC,FC,ST,MU,LC,MPO,MT,MTRJ
Cleaning time 500 times
Size(mm) W 115 � H 79 � D 32
Replacement Reel ATC-NE-NS 10 reels/set

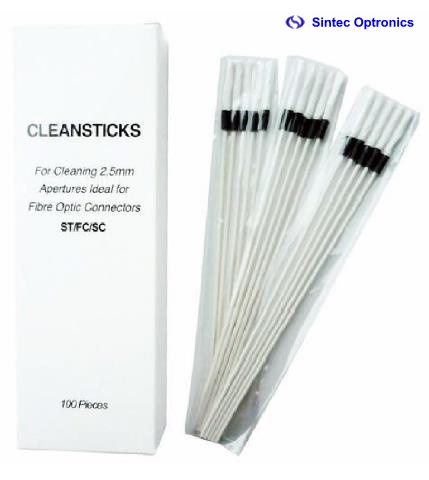

Fiber clean sticks

To clean the end face of connectors already installed in patch panels and hardware devices, you insert the stick into the bulkhead adapter or receptacle, make the tip contact the connector end face, make a single turn and then pull the stick out and dispose. You should never reuse a stick.
The Stick Type Connector Cleaner uses dry alcohol-free cloth, its stick-type shape makes it a superb tool for cleaning connector ferrule end face located in difficult spots inside the adaptors. One piece of stick type cleaner can be used for four wipes for equipment construction and one wipe for maintenance purpose. Two models serve almost all types of connectors.

Features:

         Easy to use and efficient. Delivers a consistently high level of cleaning performance.

         Easy to clean ferrule end-faces inside the plug-in fiber-optic connectors and various adaptors.

         Lightweight and safe to use. Compact and disposable.

         Suitable for cleaning inside adaptors due to dust control.

Specification

Type Type 2.5mm Type 1.25mm Type 2.0mm
Cleans per stick Maintenance (for repair) 1 cleaning / piece
Connectors cleaned SC, SC2, FC, ST, DS MU, LC for connectors for high definition television camera
Dimension L (mm) 146 101 146 146
Packaging 100 pcs/set

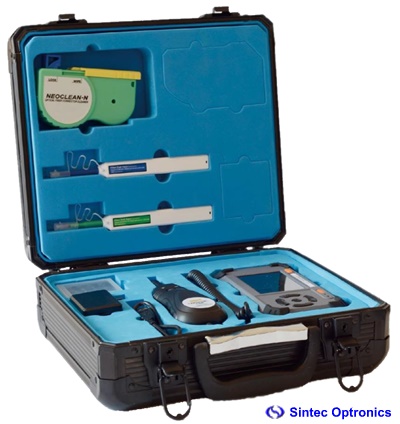

Fiber optic inspection kit

To clean the end face of connectors already installed in patch panels and hardware devices, you insert the stick into the bulkhead adapter or receptacle.

Features:

         Optical Fiber Video Inspection Probe

         3.5� LCD Monitor

         Standard Tips : U25M, U12M, U25F, ULCF

         2.5mm Fiber Optic Cleaner Pen SC/FC/ST

         1.25mm Fiber Optic Cleaner Pen LC/MU

         Optical Connector Cleaner

         Carrying Tool Case
