         New Products             Laser Cutting Head



We supply the laser cutting heads with auto-focusing function and you can easily cut uneven surface metals.



Laser cutting head is one of most important parts of laser cutting machines. The traditional cutting head only includes focusing lens and nozzle and does not have auto-focus function. If there is no auto-focus, the spacing between the focus lens and workpiece will not be same, which results in different focused beam diameters and then different power densities at different positions. Thus the cutting quality may be different at the positions.



Based on the requirements from the market, we have developed self-floating laser cutting heads. By using capacitive sensor and auto motor moving system, the spacing between the focus lens and workpiece will be kept same at any position of the cutting field. The response time is millisecond range only and the system is stable and reliable.

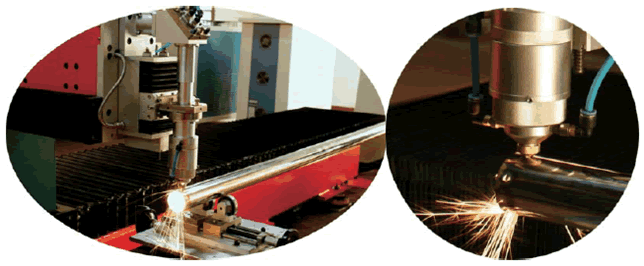

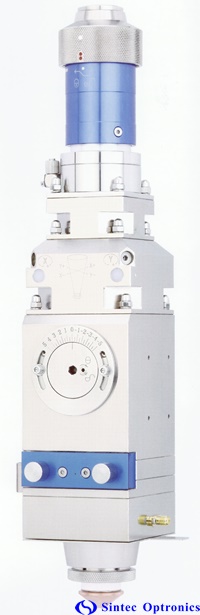

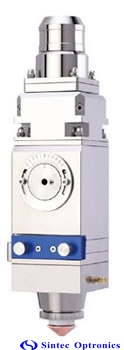

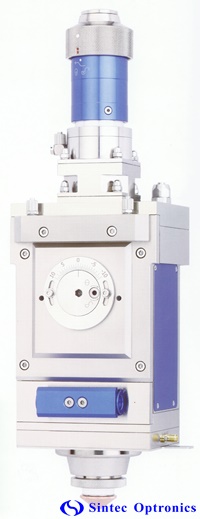

1. ST-GQ Fiber Laser Cutting Head

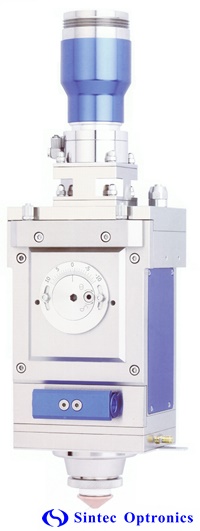

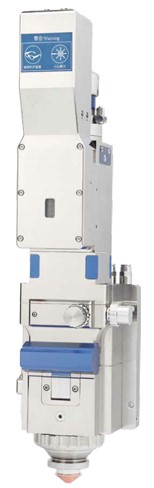

High Power Fiber Laser Cutting Head



Feature:

> Has strong advantages over high power and large area fiber laser cutting application
> Complete sealed internal structure can prevent optical parts in cutting head from polluted by dusts
> Easy to control precision with two point center adjustment and CAM structure focusing system
> Drawer installation method make protective lens exchange process more convenient.
> It is modular design with high precision, easy to maintain.
> CCD can be equipped as per customer's requirement.



Technical Parameters:

Model ST-GQ-DGL-001B ST-GQ-DGL-001C
Max Laser Power 5000W
Compatible Laser Machine IPG, SPI, Rofin, nLight, Coherent, Raycus, Max and etc
Fiber connection interface QBH QD
Collimator Focal Length 75mm, 100mm

Focal Length

125mm, 150mm, 200mm

Vertical Adjustment Range

±10mm

Horizontal Adjustment Range

±1.5mm

Clear Aperture

25mm

Max Cutting Gas Pressure

25Bar

Gross Weight

4.9kg

5.2kg

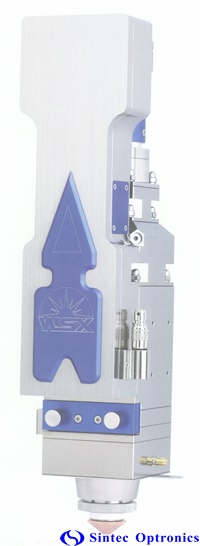

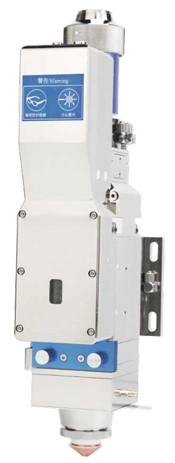

Medium Power Fiber Laser Cutting Head



Feature:

> Has strong advantages over medium power and large area fiber laser cutting application
> Complete sealed internal structure can prevent optical parts in cutting head from polluted by dusts
> Easy to control precision with two point center adjustment and CAM structure focusing system
> Drawer installation method make protective lens exchange process more convenient.
> It is modular design with high precision, easy to maintain.
> CCD can be equipped as per customer's requirement.



Technical Parameters:

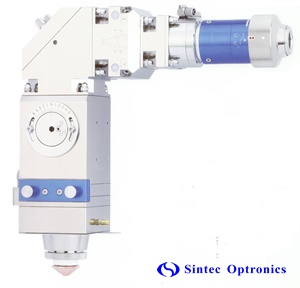

Model ST-GQ-001A ST-GQ-ZDTJ-001A1 ST-GQ-WT-001F
Max Laser Power 2000W
Compatible Laser Machine IPG, SPI, Rofin, nLight, Coherent, Raycus, Max and etc
Fiber connection interface QBH
Collimator Focal Length 75mm, 100mm
Focal Length 125mm, 150mm, 200mm
Vertical Adjustment Range ±5mm ±8mm

±5mm

Horizontal Adjustment Range

±1.5mm

Clear Aperture

25mm

Max Cutting Gas Pressure

25Bar

Gross Weight

3.3kg

4.7kg

4.2kg

1ZDTJ-001A with imported motor driver installed, achieved the auto-focusing system and has great improvement in peforation

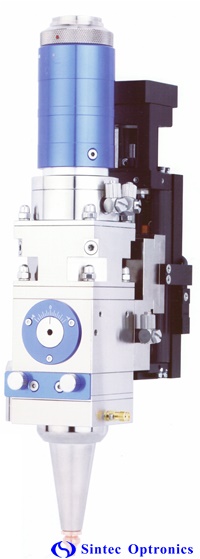

3D Fiber Laser Cutting Head

Features:
> Has strong advantages over small, medium power and small area fiber laser cutting application
> Complete sealed internal structure can prevent optical parts in cutting head from polluted by dusts
> Easy to control precision with CAM structure focusing system
> Drawer installation method make protective lens exchange process more convenient.
> Light body and compact structure with slide ball screw which fit to attached on mechanical hand



Technical Parameters:

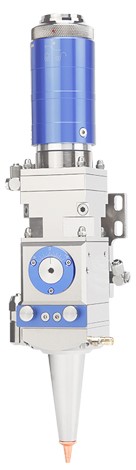

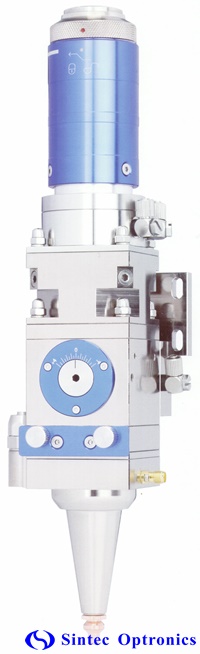

Model ST-GQ-SWQG-001B ST-GQ-SWQG-001A
Max Laser Power 1200W
Compatible Laser Machine IPG, SPI, Rofin, nLight, Coherent, Raycus, Max and etc
Fiber connection interface QBH QD

Collimator Focal Length

75mm, 100mm

Focal Length

125mm, 150mm

Vertical Adjustment Range

±4mm

Horizontal Adjustment Range

±1.5mm

Clear Aperture

20mm

Max Cutting Gas Pressure

25Bar

Gross Weight

1.7kg

2.4kg




Low and Medium Power Fiber Laser Cutting Head



Features:

> Has strong advantages over small, medium power and small area fiber laser cutting application
> Complete sealed internal structure can prevent optical parts in cutting head from polluted by dusts
> Easy to control precision with CAM structure focusing system
> Drawer installation method make protective lens exchange process more convenient.



Technical Parameters:

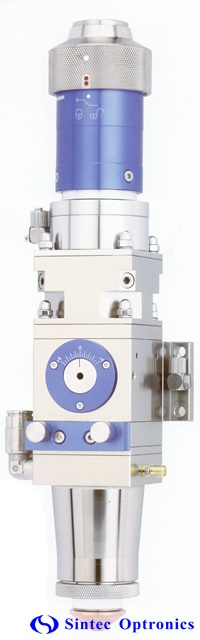

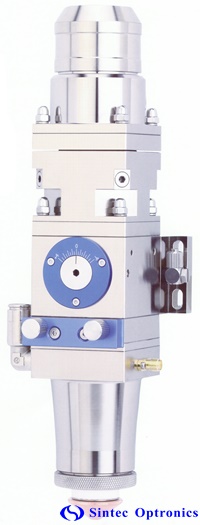

Model ST-GQ-MN-001C ST-GQ-MN-001D ST-GQ-MN-001E ST-GQ-WT-001F ST-GQ-RK-001C
Max Laser Power 1000W
Compatible Laser Machine IPG, SPI, Rofin, nLight, Coherent, Raycus, Max and etc
Fiber connection interface QBH QCS QBH QCS QCS
Collimator Focal Length 75mm, 100mm - 75mm, 100mm - -
Focal Length 125mm, 150mm, 200mm
Vertical Adjustment Range ±4mm ±4mm ±4mm

±4mm

±5mm
Horizontal Adjustment Range ±1.5mm
Clear Aperture 20mm 20mm 20mm 20mm 25mm
Max Cutting Gas Pressure 25Bar
Gross Weight 1.7kg 1.3kg 1.6kg 1.2kg 2.8kg



Low and Medium Power Fiber Laser Cutting Head



Features:
> Has strong advantages over small power and tiny parts fiber laser cutting application
> Complete sealed internal structure can prevent optical parts in cutting head from polluted by dusts
> Easy to control precision with CAM structure focusing system



Technical Parameters:

Model ST-GQ-MN-001G1 ST-GQ-MN-001H1 ST-GQ-MN-001I ST-GQ-MN-001J
Max Laser Power 350W 500W
Compatible Laser Machine IPG, SPI, Rofin, nLight, Coherent, Raycus, Max and etc
Fiber connection interface QBH

QCS

QBH QCS
Collimator Focal Length 75mm, 100mm - 75mm, 100mm -
Focal Length 125mm, 150mm 55mm
Vertical Adjustment Range ±3mm
Horizontal Adjustment Range ±1.5mm
Clear Aperture 18mm
Max Cutting Gas Pressure 25Bar
Gross Weight 1.5kg 1.2kg 1.2kg 1kg

1Drawer installation method make protective lens exchange process more convenient.


Laser Beam Cutting Head

Features:

> Has strong advantages over small power cutting application on metal and non-metal material
> Water cooled system to prevent lens from overheating
> It is high efficiency, easy to operate and more economic
> Focal length center can be adjusted by simple tool
> Double drawer structure focusing system, match with long and short focal length



Technical Parameters:

Model ST-HQ-001A
Focal Length 63.5mm, 101.6mm
Main Body Adjustment Range 40mm
Horizontal Adjustment Range ±1mm
Clear Aperture 20mm
Max Cutting Gas Pressure 25Bar

Gross Weight

4.5kg





2. High-power Nd:YAG Self-floating Laser Cutting Head



There are following main features of our cutting heads:



1) Suitable to 1064nm wavelength YAG laser cutting system.

2) Suitable to laser power less than 1000W.

3) Spacing between the exit of the nozzle and workpiece is 1-20mm adjustable, response time is less than 5ms, and the control precision is 0.2mm.

4) Independent, complete Z-axis control and adjustable focus position. Also there are some functions such as automatic/manual mode, up/down jog control, auto tracking/auto reset function, multiple gap setting, zero shift compression etc

5) Numerical control port can easily be connected to most controllers. The cutting system automatically tracks the marking head open, close or back to zero.

6) Multiple focusing lenses with various focal lengths.

7) Cooled nozzle design used for high pressure cutting.

8) Over travel protection, collision protection and power-off protection etc.







High power Nd:YAG self-floating laser cutting head consists of nozzle, focal lenses and auto-focusing system.

  • Nozzle: nozzle is very important for laser cutter. Through in-depth research and tests, we have obtained a large of optimal data according to the different customers’ requirements to recommend the best suitable nozzle.

  • Focal lens: in general, the focal lens system consists of a few lenses or non-spherical lenses. The focal length is longer, the focused beam diameter is larger, the power density is lower, but the depth of focus is longer, which is beneficial to cutting thick material.

  • Auto-focusing system: there is a capacitive sensor used to measure the distance between the nozzle and workpiece. The measured distance will be online fed backed and then the system will drive the step motor or servo motor to adjust the distance and always keep the distance same.

Technical specifications:

Part number

STC2

Max. allowed laser power

1000W

Focal length of focal lens

80mm/120mm

Max. input beam diameter

40mm

Adjustable focus range

-4mm4mm

Length of cutting head

146mm @ FL=80mm

Max. diameter of cutting head

88mm

Required DC power input

24VDC

Weight

0.5kg @ FL=80mm

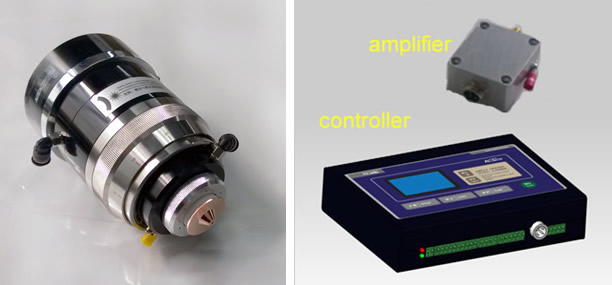

3. STC5 Fiber Laser Cutting Head

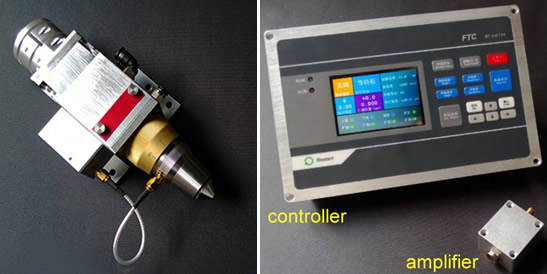

STC5 series cutting head is a newly designed cutting device for fiber lasers. A fully closed-loop control method with high performance capacitive sensor enables STC5 to be a cost effective solution, which demonstrate an impressive auto-focusing features to enable the cutting machine to process any sheet surface waviness.  Besides common communication port, STC5 is equipped with Ethernet port in order for real-time height detection, step piercing, leapfrog, pen-up height presetting, constant optical path compensation, extraordinary fast response time, and dual closed servo loop of speed and position feedback.





Features:

  • Fully closed speed and position loop

  • Ethernet communication port

  • Step piercing

  • Leapfrog jumping

  • Pen-up height presetting

  • Constant optical path compensation

  • Extraordinary response time

  • Auto-focusing for surface waviness

  • Crash protection

  • No signal attenuation over long distance

  • Thumb drive upgrading firmware



Specifications:

Part number

STC5-xxx       (xxx: QCS or QBH related to fiber adaptor)

Cutting Head

Max power input

1000W

Lens EFL

100/125/150mm

Nozzle diameter

1 to 2mm

Nozzle type

Single outlet

Adjustable focus range

-4 to +4mm

Fiber adapter

QBH(IPG), QCS(Raycus), Other available upon request

Maximum assistant gas

2.5MPa

Cooling water

>1.5l/min, 6mm in diameter

Maximum diameter

50x50mm

Length

241mm @ FL100

Weight

1.6kg @ FL100

Capacitive Sensor & Focus Tracking Controller

Sampling rate

1000Hz

Static accuracy

1um

Dynamic accuracy

50um

Height sensing range

0-10mm

Max travel speed

500mm/s(depends on the motor and ball screw pitch)

Max cable length

100m

Communication port

Ethernet

Firmware upgrade

Thumb drive

Capacitive sensor

Self-accommodating to other cutting head and nozzle

Alarm

Crash protection, edge detection

Calibration

Control panel access

Movement

Leapfrog, step piercing, pen-up height presetting

Capacitance monitor

Oscilloscope

Required DC power input

24VDC

Controllable motor

Servo motor such as Moon, Panasonic etc



Notes: Fiber core diameter of single mode IPG 500W laser is 50um, and the divergence angle from QBH is 160mrad. The reduced divergence angle after QBH-A-060 is 0.4-0.6mrad with 16-20mm diameter, which is less than the cutting head aperture 25mm.

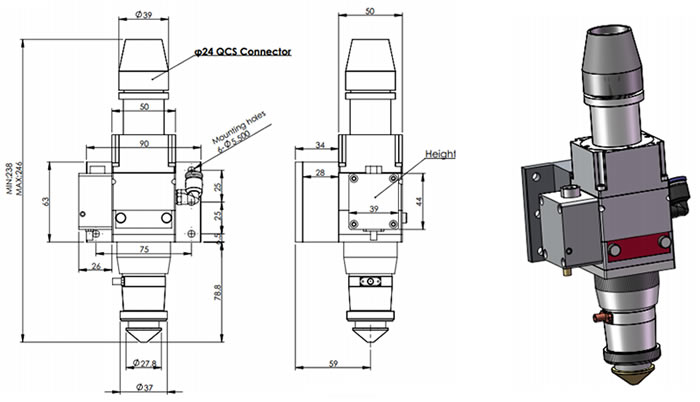

Dimensions:

 Laser welding head and beam delivery   Cutting Nozzle
