          Beam Shaper Top Hat Square at 532nm









General Description: Beam Shaper module for high-power lasers with wavelengths in the near infrared. The modules are of solid industrial design and can easily be integrated in the beam path of the collimated laser light or connected to fibre coupled lasers. Homogeneous top hat light fields with various dimensions are generated at the working distance of the modules.













Part number

Top Hat Field Size

(mm x mm)

Working Distance

(mm)

Maximum input divergence* (mrad)

BSH-532-0.5x0.5 (303.201)

0.5 x 0.5 0.05

90 5

< 2.2

BSH-532-0.75x0.75 (303.202)

0.75 x 0.75 0.07

145 7

< 2.2

BSH-532-1.0x1.0 (303.203)

1.0 x 1.0 0.1

120 6

< 3.5

BSH-532-1.5x1.5 (303.204)

1.5 x 1. 5 0.15

145 7

< 3.5

BSH-532-2.0x2.0 (303.205)

2.0 x 2.0 0.2

220 11

< 5

BSH-532-3.2x3.2 (303.206)

3.2 x 3.2 0.3

220 11

< 7

BSH-532-4.2x4.2 (303.207)

4.2 x 4.2 0.4

270 13

< 7

BSH-532-5.1x5.1 (303.208)

5.1 x 5.1 0.5

220 11

< 9

BSH-532-6.1 x 6.1 (303.209)

6.1 x 6.1 0.6

270 13

< 9

BSH-532-7.5x7.5 (303.210)

7.5 x 7.5 0.7

220 11

< 6

BSH-532-8.3x8.3 (303.211)

8.3 x 8.3 0.8

370 18

< 9

BSH-532-9.4x9.4 (303.212)

9.4 x 9.4 0.9

270 13

< 6

BSH-532-11.7x11.7 (303.213)

11.7 x 11.7 1.0

270 13

< 15

BSH-532-15.7x15.7 (303.214)

15.7 x 15.7 1.5

370 18

< 15

BSH-532-20.0x20.0 (303.215)

20.0 x 20.0 2

220 11

< 15

BSH-532-23.5x23.5 (303.216)

23.5 x 23.5 1.5

270 13

< 15

* The half angle of the maximum input divergence is stated.



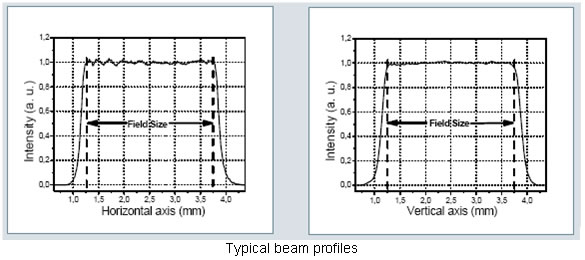

Wavelength region λ

532 nm

Clear aperture

f = 20 mm

Input beam diameter

1020 mm

Uniformity*

(Imax-Imin)/(Imax+Imin) < 3.5 % (typically) Standard deviation: σ < 1.5 %

Efficiency**

Ifield,hom / Ifield,total > 75 % (typically > 80 %)

Transmission

> 92 % (typically > 95 %)

Damage threshold

@ 0.4 J/cm2 for 10 ns pulses, 1 Hz, 532 nm (@0.5 mrad input divergence, larger for increased input divergence)

Options

  • Customized uniformity and efficiency

  • Customized wavelength

  • Customized field size (line size, rectangular field) and working distance on request

  • Compact housing

Accessories

  • Variable Attenuator

  • PCI-Card for Attenuator (0201.000)

  • Long housing for customized field sizes

  • Beam preparation module

  • Fibre collimator module for fibre coupled lasers

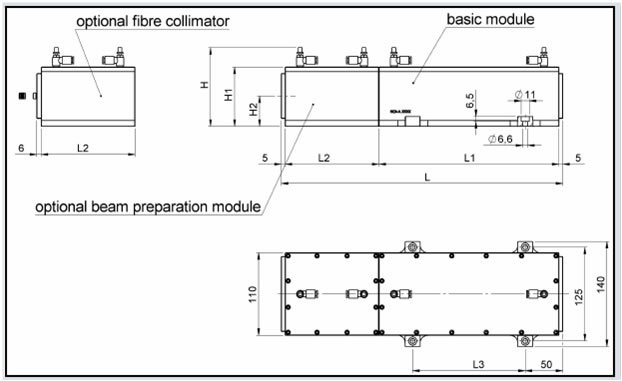

Dimensions of the basic module

H

H1

H2

L1

L3

Mounting

105mm

79mm

40.5mm

240mm

150mm

4xM6

Dimensions of the beam preparation module (BPM) and the fibre collimator module (FC)

BPM: L2

FC: L2

H

H1

H2

125 mm

125 mm

105mm

79mm

40.5mm

Technical data for fibre collimator

  • NA: 0.12 or 0.22

  • Mountings: SMA-905 or LD 80

  • Fibre diameter: 100μm 600μm

* The uniformity depends on the laser beam parameters: M2 > 20 is recommended. Imax and Imin denote the maximum and minimum intensity in the uniform field, respectively.

** Ifield,hom / Ifield,total denotes the ratio of the integrated power in the homogeneous field versus the total power at the field plane.
