         Products             CNC Control Card and Software

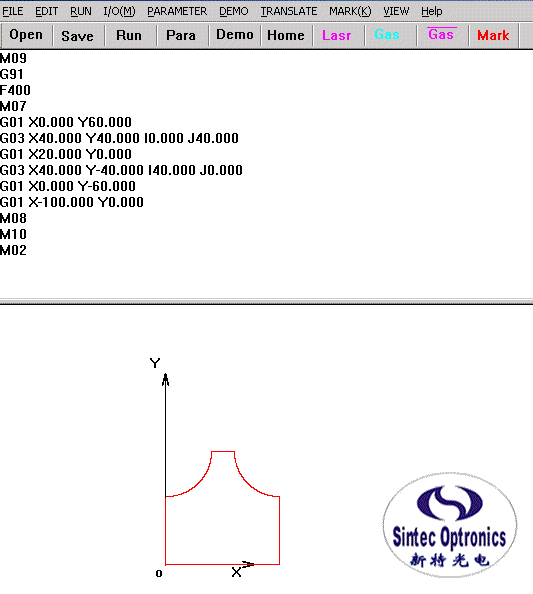

CNC2000 control software, developed using DSP technology, is based on Windows XP, 2000, 98, 95. It can control 4-axis via PCI-slot control card and widely used in laser cutting, welding and engraving machines.


  • Maximum axis: 4

  • Program verification function

  • MDI function

  • Absolute/increment programming (G90, G91)

  • Programming using inch, metric, pulse number (G20, G21, G22)

  • Mirror function (G24, G25)

  • Zoom (magnification/demagnification) (G50, G51)

  • Automatic, step, manual, home function

  • Fast position (G00), linear interpolation (G01)

  • Arc interpolation (G02, G03)

  • Pause (G04), screw thread function (G33)

  • Set/back zero (G29, G30)

  • Reverse clearance compensation, beam diameter compensation (G40, G41, G42)

  • Coordinate rotation (G68, G69)

  • Sub-function

  • Static/dynamic emulation

  • Max stepping frequency: 200000Hz

  • Automatic acceleration/deceleration

  • Automatic conversion of PLT and DXF files
 Marking Software
