          RF-excited CO2 Lasers



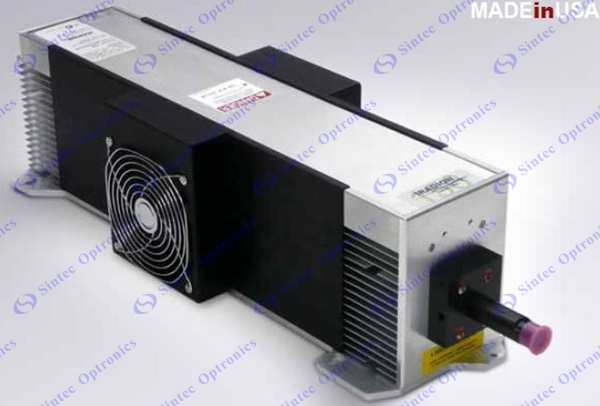

Infinity Series RF-excited Lasers



The Infinity Series includes RF excited, 40, 60, 80, 100, and 120 Watt CO2 lasers. For customer convenience, all models have identical form and fit with internal RF-drive electronics. If a different power laser is required, only the DC power supply will require changing. 40, 60, 80, 80, 100, and 120 Watt CO2 lasers are offered in three different cooling configurations. The Air-Cooled configuration allows for the customer to supply the necessary cooling air for the laser. The Fan-Cooled configuration comes fitted with cooling fans. The water cooled version is supplied with an input and output port to connect a chilled water source. All configurations of 40, 60, 80, 100, and 120 Watt lasers are built around our patented ceramic core technology that provides superior lifetime, reliability, and stability.



Specification:

Model Infinity 40 Infinity 60 Infinity 80 Infinity 100 Infinity 120
Rated Optical Power 40 60 80 100 120
Mode Quality (M2) 1.2 1.2 1.2 1.2 1.2
Beam Ellipticity < 1.2:1 < 1.2:1 < 1.2:1 < 1.2:1 < 1.2:1
Beam Diameter (mm) 1/e2 2.5 2.5 2.5 2.5 2.5
Beam Divergence (mR, full angle) 5.2 5.2 5.2 5.2 5.2
Wavelength (μm) 10.57-10.63 10.57-10.63 10.57-10.63 10.57-10.63 10.57-10.63
Rise Time (μS)  < 75  < 75  < 75  < 75  < 75
Power Stability from cold (%)  ±6%  ±6%  ±6%  ±6%  ±6%
Polarization Random Random Random Random Random
Cooling Air or Water Air or Water Air or Water Air or Water Air or Water
Input power (Watts) 640 960 1200 1400 1400
Input Voltage / Current 32V / 20A 40V / 24A 45V / 24A 50V / 28A 50V / 28A
Weight (Kg / Lbs.)  14.7 / 32.4 14.7 / 32.4 14.7 / 32.4 14.7 / 32.4 14.7 / 32.4



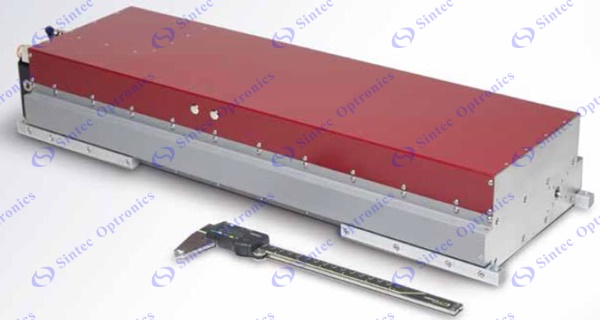

Model 1625
The lightest, most compact 250 Watt CO2 laser source

Our model 1625 is a 250 Watt CO2 laser tube and is based on our proven Ceramic Core Technology. Model 1625 is the smallest RF-driven, sealed CO2 laser in the world.
RF Driven CO2 lasers are typically designed to operate in a pulsed mode, at a specified Peak-Power. The pulses can vary in duration from near zero to continuous-wave (CW) - the laser is on continuously. Further, at the time of shipping, a laser could produce a significantly more peak-power than specified.

This additional, or reserve power is common in CO2 lasers, and is intended to further the specified lifetime of a laser that is known to have power degradation over time; the laser will stay within specification longer.



Model Infinity 1625
Rated Optical Power 250
Mode Quality (M2) 1.2
Beam Ellipticity < 1.2:1
Beam Diameter (mm) 1/e2 2.5
Beam Divergence (mR, full angle) 5
Wavelength (μm) 10.57-10.63
Rise Time (μS) < 75
Power Stability from cold (%) ±4%
Polarization Vertical to mounting plane
Cooling Water
Flow Rate (l/m, g/m) >9.8, 2.6
Input power (Watts) 2800
Input Voltage / Current 50V / 56A
Weight (Kg / Lbs.) 23 / 50



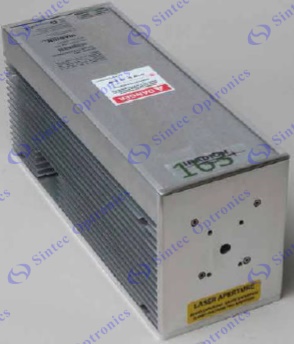

Z30/Z40 Series RF-excited Lasers

The smallest RF driven 30 and 40 Watt laser

Our model Z30/Z40 is a 30/40 Watt CO2 laser tube and is based on Our proven Ceramic Core Technology. One of the primary differences and technological advancements that is incorporated in this design is the resonator. The Z30’s/Z40’s resonator is a Z-folded (2-fold) unstable resonator. This allows for a smaller package design when compared with other 30/40 Watt laser tubes and is the shortest (folded) resonator in the 30 – 50 watt CO2 laser class, but has a remarkably long (unfolded) resonator length. This provides superior power and beam diameter stability. Early test have shown the from-cold power stability in the ±2% range.



Specification:

Model Model 163 Model 164
Rated Optical Power <=30 40
Mode Quality (M2) 1.2 <=1.2
Beam Ellipticity < 1.2:1 < 1.2:1
Beam Diameter (mm) 1/e2 2.3 2.3
Beam Divergence (mR, full angle) 7 7
Wavelength (μm) 10.57-10.63 10.57-10.63
Rise Time (μS) < 75 < 75
Power Stability from cold (%) ±5% from cold, guaranteed
±3% after 2 mins typical
±5% from cold, guaranteed
±3% after 2 mins typical
Polarization Random Random
Cooling Air Air
Flow Rate (air) 140CFM x 2 140CFM x 2
Input power (Watts) 480 600
Input Voltage / Current 48V / 10A 40V / 15A
Weight (Kg / Lbs.) 9.5 / 21 9.5 / 21



DP-S Series RF-excited Lasers



Technology Features:

1. The better choice for drop‐in plug and play replacement of S‐100, S-200 (equivalent to CO2-DP-S20) and S‐300 (equivalent to CO2-DP-S3) laser tubes in Domino laser coders.

2. Exclusive water/compressed air compatible cooling system (patent pending)

3. IP 65 rated enclosure

4. Exclusive titanium‐body carbon dioxide laser (patent pending)

5. Stable long term mode alignment

6. Hermetic gas seal integrity for long life

7. Elimination of laser optical mode drift

8. Improved laser optical resonator system

9. Upgraded RF power supply components and configuration

10. DC decoupled RF electrodes for safety and elimination of DC arcing

11. Quad‐Dipole “hot” RF electrode configuration

12. “Die‐Hard” RF power transistor system with integrated electronic protection



Features:

1. 20Wt and 40W nominal S‐Series drop‐in replacement plug‐and‐play carbon dioxide laser source

2. Water or compressed air cooling standard

3. Enhanced RF stability and cold start‐up performance

4. Advanced RF‐pumped laser tube technology

5. 9.3‐micron, 10.3‐micron and 10.6‐micron output wavelengths readily available

6. DC voltage arc‐over immunity

7. Optical system isolated from coolant system (no coolant contamination of the optical system)

8. IP65 enclosure rating



CO2-DP-S20: Laser with Optional External Connector Plate (side view)



CO2-DP-S40: Laser with Optional External Connector Plate (side view)





CO2-DP-S20: Laser Rear Cooling Heat Exchanger   CO2-DP-S40: Laser Rear Cooling Heat Exchanger



Technical Specifications:



CO2-DP-S20

CO2-DP-S40

Electrical Engineering

Voltage input via SSeries controller

72 VDC

Current input via SSeries controller

3.0 to 3.2 amps

6.0 to 6.4 amps

Laser enable signal via SSeries controller

5.0 volts

Laser enable signal bandwidth

0 to 15 kHz

Laser enable maximum turnon delay

<12 microseconds

Laser SSeries system connections

via SSeries 3pin and 6pin Molex connectors

Interlock connection

via SSeries system interlock

ESD tolerance (min)

15 kV static (to grounded laser chassis only)

Optical Engineering

Laser power output

18W min, 20W nom. & 25W max. (wavelength dependent)

35W min, 40W nom. & 45W max. (wavelength dependent)

Laser wavelength

10.6microns, 10.3microns or 9.3microns

Laser beam diameter/divergence

4.0/3.5 (mm/mrad) nominal

Laser mode quality

>95% TEMoo electric field purity

Laser rise/fall times (nominal)

150μ sec /180μ sec nominal

Maximum electrical duty cycle (long term)

80% (water cooling required above 30%)

Maximum marking duty cycle

100% (with water cooling)

Maximum laser bore temperature

55 degrees C

Maximum laser power droop w/temp.

20% of nominal at 55 degrees C

Laser tube MTBF (projected)

50,000 hours

Mechanical Engineering

Dimensions

7.5cm OD x 49.5cm length

10.2cm OD x 61.0 cm length

Weight

3.8 kg

7.2 kg

Mounting holes & position

Per SSeries laser interface plate via precision alignment pins

System Engineering

Interlock, fault and remote disable

Via SSeries controller

Laser enable source signal

Via SSeries controller

Input cooling specification

Compressed air option (<30% duty cycle only):

5OC to 35OC unfiltered at specified laser head inlet gas pressure

Water cooled option (all duty cycles): 15 OC to 30 OC at 1.0 to 3.0 liters/min

Gas refill capability

At factory only

Warranty

12 months












DP-D Series RF-excited Lasers



Technology Features

1. The better choice for direct replacement DDC2 (equivalent to CO2-DP-D2) or DDC3 laser tubes (equivalent to CO2-DP-D3) in Domino laser coders.

2. World’s first titanium-body carbon dioxide laser (patent pending)

3. Stable long term mode alignment

4. Improved gas seal process integrity for long life

5. Elimination of laser optical mode drift

6. Improved laser optical resonator system

7. Upgraded cooling fin mechanical support for improved robustness and cooling

8. Improved cooling fin RF grounding for enhanced RF power coupling

9. Upgraded RF power supply components and configuration

10. DC decoupled RF electrodes for safety and elimination of DC arcing

11. Single 360 degree rotation of RF “hot” electrode configuration

12. “Die-Hard” RF power transistor with integrated electronic protection

13. Corrosion resistant brass RF cover with Kapton sealing

14. “Drop-Safe” shipping container for maximum individual laser protection during transit

15. "Smart Start"TM, a unique laser cold start auto ignition system, prevents "Lazy Laser Syndrome" and extends shelf life of spare tubes (patent pending)



Features:

1. 25W nominal DDC2 series and 25W nominal DDC3 series compatible OEM plug-and-play carbon dioxide laser source

2. Enhanced RF stability and cold start-up performance

3. Advanced RF-pumped laser tube technology

4. 9.3-micron and 10.6-micron output wavelengths readily available

5. Standard and high speed pulse option

6. DC voltage arc-over immunity

7. Thermal grease free optical mount assembly



CO2-DP-D2 side view



CO2-DP-D3 side view



CO2-DP-D3 shipping container



Technical Specifications:



CO2-DP-D2

CO2-DP-D3

Electrical Engineering

Voltage input

84VDC via DDC2 controller

84VDC via DDC controller

Current input

3.0-3.2A via DDC2 controller

3.0-3.2A via DDC3 controller

Laser enable signal

5V via DDC2 controller

5V via DDC3 controller

Laser enable signal bandwidth

0 to 15 kHz

Laser enable maximum turnon delay

<12 microseconds

Laser enable connection

via DDC2 50-ohm BNC numbered cable connector

via DDC3 50-ohm BNC numbered cable connector

Interlock/system status connection

via DDC2 system interlock

via DDC3 system interlock

ESD tolerance (min)

15kV static (to grounded laser chassis only)

Optical Engineering

Laser power output

20W min, 25W nom. & 30W max. (wavelength dependent)

Laser wavelength

10.6microns or 9.3microns STD

Laser beam diameter/divergence

4.0/3.5 (mm/mrad) nominal

Laser mode quality

>95% TEMoo electric field purity

Laser rise/fall times (nominal)

100μs/150μs nominal, 80μs/115μs high speed

Maximum electrical duty cycle (long term)

25% (air chiller recommended above 15% duty)

Maximum marking duty cycle

100%

Maximum laser bore temperature

55 degrees C

Maximum laser power droop w/temp.

20% of nominal at 55 degrees C

Laser lifetime (nominal)

80% of nominal laser power at 50,000 hours

Mechanical Engineering

Dimensions

0.95 cm bore OD x 43 cm length

Weight

0.44 kg

Mounting holes & position

Per DDC2 laser interface plate

Per DDC3 laser interface plate

System Engineering

Interlock, fault and remote disable

Via DDC2 controller

Via DDC3 controller

Laser enable source signal

Via DDC2 controller

Via DDC3 controller

Input cooling specification

Compressed air only

5OC to 35OC unfiltered compressed air at specified laser head inlet gas pressure

Gas refill capability

At factory only

Warranty

12 months












CO2-DP-OEM Series Laser



Technology Features

1. The best choice for multi‐wavelength OEM carbon dioxide laser sources

2. Exclusive water/compressed air compatible cooling system (patent pending)

3. IP 65 rated enclosure

4. Exclusive titanium‐body carbon dioxide laser (patent pending)

5. Stable long term mode alignment

6. Hermetic gas seal integrity for long life

7. Elimination of laser optical mode drift

8. Advanced laser optical resonator system

9. Upgraded RF power supply components and configuration

10. DC decoupled RF electrodes for safety and elimination of DC arcing

11. Quad‐Dipole “hot” RF electrode configuration

12. “Die‐Hard” RF power transistor system with integrated electronic protection





Features:

1. 20W and 40W OEM carbon dioxide laser source

2. Water or compressed air cooling standard

3. Enhanced RF stability and cold start‐up performance

4. Advanced RF‐pumped laser tube technology

5. 9.3‐micron, 10.3‐micron and 10.6‐micron output wavelengths readily available

6. DC voltage arc‐over immunity

7. Optical system isolated from coolant system (no coolant contamination of the optical system)

8. IP 65 enclosure rating

9. Optional external connector plate





CO2-DP-OEM20

CO2-DP-OEM20

Electrical Engineering:

Voltage input

72 VDC via user supplied source

Current input

3.5A maximum

7.0A maximum

Laser enable signal

5.0 volts high impedance input via 50‐ohm BNC

Laser enable signal bandwidth

0 to 15 kHz

Laser enable maximum turn‐on delay

<12 microseconds

Interlock connection

Supplied by user

ESD tolerance (min)

15 kV static (to grounded laser chassis only)

Optical Engineering:

Laser power output

18W min, 20W nom. & 25W max. (wavelength dependent)

35W min, 40W nom. & 50W max. (wavelength dependent)

Laser wavelength

10.6, 10.3 or 9.3um

10.3 or 9.3um

Laser beam diameter/divergence

4.0/3.5 (mm/mrad) nominal

Laser mode quality

>95% TEMoo electric field purity

Laser rise/fall times (nominal)

150 μsec /180 μsec nominal

Maximum duty cycle

100% (with water cooling)

Maximum laser bore temperature

55 degrees C

Maximum laser power droop w/temp.

20% of nominal at 55 degrees C

Laser tube MBTF (projected)

80% of nominal laser power at 50,000 hours

Mechanical Engineering:

Dimensions

7.5 cm (3.0”) enclosure OD x 54.5 cm (21.5”) length

10.2 cm (4.0”) enclosure OD x 61.0 cm (24.0”) length

Weight

4.1 kg (9.1 lbs.)

7.2 kg (15.9 lbs.)

System Engineering:

Interlock, fault and remote disable

Supplied by user

Laser enable source signal

Supplied by user

Input cooling specification

1) Compressed air option (<30% duty cycle only): 5OC to 35OC unfiltered at specified laser head inlet gas pressure

Or 2) Water cooled option (all duty cycles): 15OC to 30OC at 1.0 to 3.0 liters/min

Warranty:

12 months






IP Ratings for both Dust and Water Ingress

Protection of persons and protection of equipment



Protection provided by enclosures for electrical equipment is indicated by the IP codes:  two characteristic numbers.



ULR Series Air- and Water- Cooled, RF-excited CO2 Lasers



Choices - Comprehensive selection of air- and water-cooled CO2 lasers with options to suit every need

  • OEM BASIC- Available in air-cooled and water-cooled configurations

  • OEM INTEGRATED - Available in air-cooled configuration with aluminum fan shroud - ideal for "bolt on" integration; no plumbing or chillers necessary

  • Class IV - Available in air-cooled or water-cooled configurations with key switch and shutter safety interlocks

Easy Integration - New low profile mounting plate with quick release electrical connector can be mounted in any orientation

Construction - All lasers are RF-excited with an internal tickle and built-in interlock and can be operated from CW to their maximum modulation frequency

Innovations - New TTL temperature warning output guards against overheating; new fault indicator LED with pinout for remote diagnostics

Options - A variety of options are available including visible pointing laser coaxial with the main beam, integrated turning mirror and reinforced thermal resistant front mounting plate

Reliability - Superior engineering and innovative technology result in stable power output, reliable service and the lowest recharge cost in the industry

Customer Service - The most responsive, customer-oriented technical support in the industry

Warranty - Two-year standard warranty on materials, workmanship and rated output power

Patents - we have devoted many years of research and development into laser technology which has resulted in numerous innovations and a multitude of U.S. patents with additional patents pending



Model

CO2-ULR10

CO2-ULR25

CO2-ULR30

CO2-ULR40

Rated power**

10W

25W

30W

40W

Wavelength

10.6um

10.6um

10.6um

10.6um

Power stability

±10%

±5%

±5%

±5%

M2

1.4±0.2

1.2±0.2

1.2±0.2

1.2±0.2

Beam size(near field)

4±1mm

4±1mm

4±1mm

4±1mm

Beam divergence(full angle)

5±1mrad

5±1mrad

5±1mrad

5±1mrad

Polarization

Linear

Linear

Linear

Linear

Pointing stability

200μrad

200μrad

200μrad

200μrad

Optical pulse rise or fall time

120±40μS

120±40μS

120±40μS

120±40μS

Optical Delay Time

38±10us

38±10us

38±10us

38±10us

Optical modulation

100% up to 5kHz

100% up to 5kHz

100% up to 5kHz

100% up to 5kHz

Modulation signal type

TTL compatible

TTL compatible

TTL compatible

TTL compatible

Cooling

Integrated Air/water

Air/water (built in)

Air/water (built in)

Air/water (built in)

Weight (Basic AC)

3.3kg



Weight (Integrated AC)

3.9kg

9.0kg

9.0kg

10.4kg

Dimension (LxWxH, Basic AC)

343x71x98mm



Dimension (LxWxH, Integrated AC)

414x89x114mm

540x133x140mm

540x133x140mm

629x133x140mm

Ambient temperature***

10-35oC

10-35oC

10-35oC

10-35oC

Relative humidity

<90%

<90%

<90%

<90%

DC input voltage

48VDC

48VDC

48VDC

48VDC

RMS current (CW)

5A

10A

10A

12A

Recommended DC power supply

DCPS-200-48

DCPS-600-48

DCPS-600-48

DCPS-600-48



Model

CO2-ULR50

CO2-ULR60

CO2-ULR-75

CO2-ULCR100

Rated power**

50W

60W

75W

100W

Wavelength

10.6um

10.6um

10.6um

10.6um

Power stability

±5%

±5%

±5%

±5%

M2

1.2±0.2

1.2±0.2

1.2±0.2

1.2±0.2

Beam size(near field)

4±1mm

4±1mm

4±1mm

4±1mm

Beam divergence(full angle)

5±1mrad

5±1mrad

5±1mrad

5±1mrad

Polarization

Linear

Linear

Lear

Random

Pointing stability

200μrad

200μrad

200μrad

200μrad

Optical pulse rise or fall time

120±40μS

120±40μS

120±40μS

120±40μS

Optical Delay Time

38±10us

38±10us

38±10us

38±10us

Optical modulation

100% up to 5kHz

100% up to 5kHz

100% up to 5kHz

100% up to 5kHz

Modulation signal type

TTL compatible

TTL compatible

TTL compatible

TTL compatible

Cooling

Air/water (built in)

Air/water (built in)

Air/water (built in)

Air/water (built in)

Weight (Integrated AC)

11.8kg

11.8kg

14kg

36.7kg

Weight (integrated WC)

11.8kg

11.8kg

14kgkg

36.7kg

Dimension (LxWxH, Integrated AC)

705x133x140mm

705x133x140mm

864x133x138mm

865x250x192mm

Dimension (LxWxH, Integrated WC)

705x133x140mm

705x133x140mm

864x133x138mm

865x250x192mm

Ambient temperature***

10-35oC

10-35oC

10-35oC

10-35oC

Relative humidity

<90%

<90%

<90%

<90%

DC input voltage

48VDC

48VDC

48VDC

48VDC

RMS current (CW)

18A

18A

20A

36A

Recommended DC power supply

DCPS-800-48

DCPS-800-48

DCPS-1000-48

DCPS-1500-48



Model

CO2-ULCR120



Rated power**

120W



Wavelength

10.6um



Power stability

±5%



M2

1.2±0.2



Beam size(near field)

4±1mm



Beam divergence(full angle)

5±1mrad



Polarization

Random



Pointing stability

200μrad



Optical pulse rise or fall time

120±40μS



Optical Delay Time

38±10us



Optical modulation

100% up to 5kHz



Modulation signal type

TTL compatible



Cooling

Air/water (built in)



Weight (Integrated AC)

36.7kg



Weight (integrated WC)

36.7kg



Dimension (LxWxH, integrated AC)

865x250x192mm



Dimension (LxWxH, integrated WA)

865x250x192mm



Ambient temperature***

10-35oC



Relative humidity

<90%



DC input voltage

48VDC



RMS current (CW)

36A



Recommended DC power supply

DCPS-2400-48





*    The above specifications are subject to change without notice.

**  Output power is guaranteed to exceed this level for a period of 15 months from the date of purchase, regardless of use.

***  At temperatures below 50ºF[10℃] operation may be intermittent and there is a potential for damage to the power supply optics.

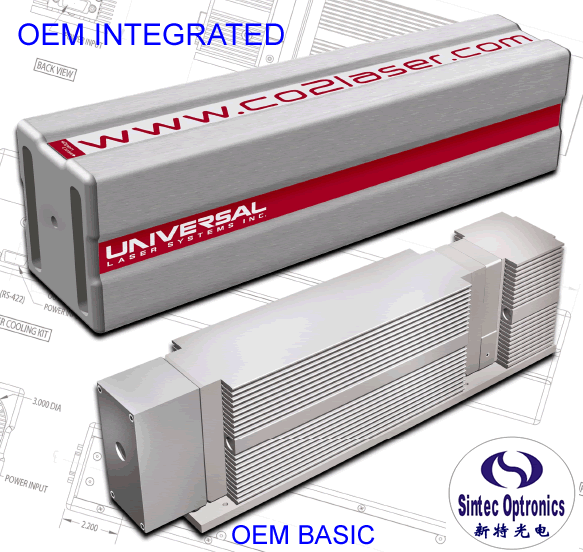

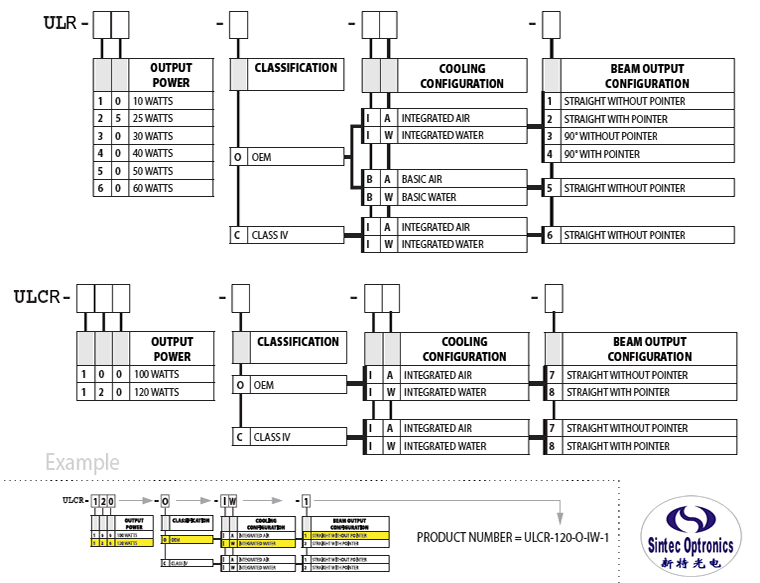

There are 3 types of configurations of each  laser: OEM BASIC, OEM INTEGRATED and Class IV.



OEM BASIC: This configuration is a basic laser tube and RF power supply. There is no cover, no fans. This is for the OEM to integrate into their equipment and provide the proper cooling and protection. Air cooled or water cooled must be specified at time of ordering.



OEM INTEGRATED: This is the configuration that we have been offering for a number of years. The laser tube and RF power supply are covered with a shroud and have the fans included.



Class IV: This configuration has a cover, manual shutter, keyed lockout switch and fans or water connections, depending on type. Air cooled or water cooled must be specified at the time of ordering.



For used lasers, we provide fully-refurbishing services at very low prices. The refurbishing includes replacing optics, RF power supply and refilling gas. All the jobs will be finished within 10 days.





Dimensions and Drawings

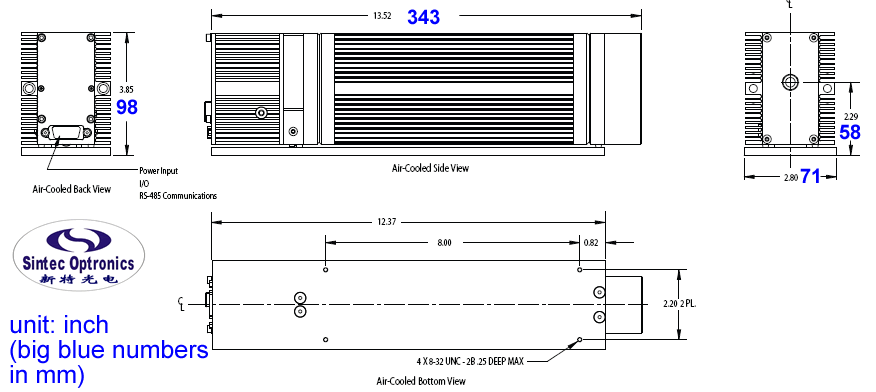

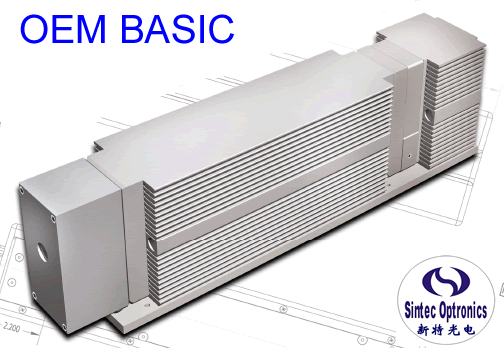

ULR OEM BASIC air-cooled

ULR OEM BASIC water-cooled

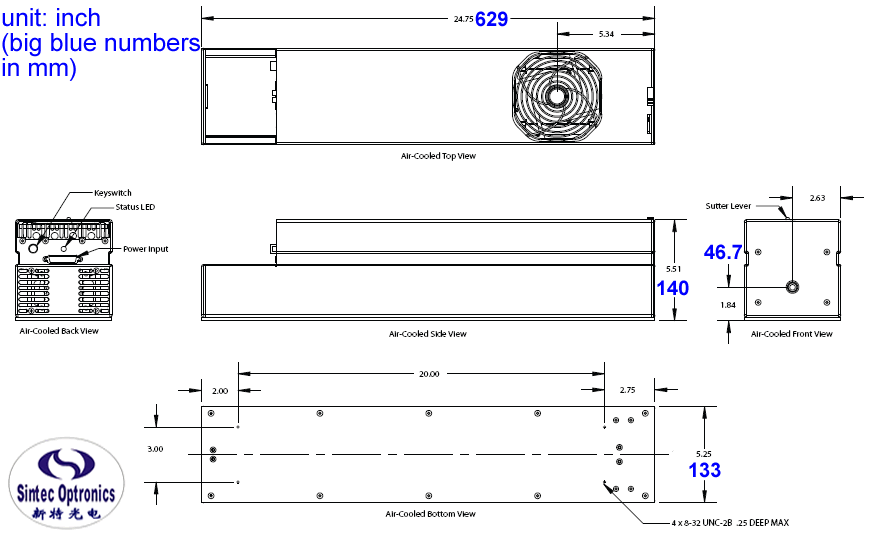

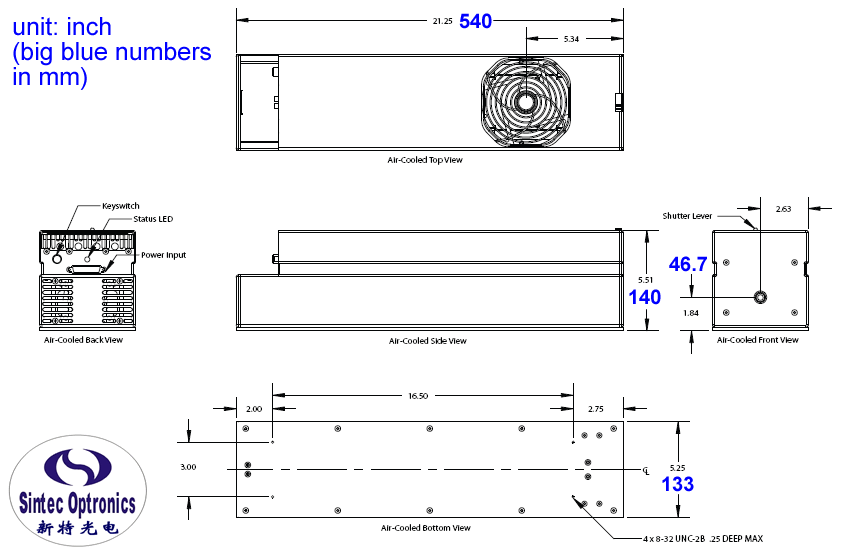

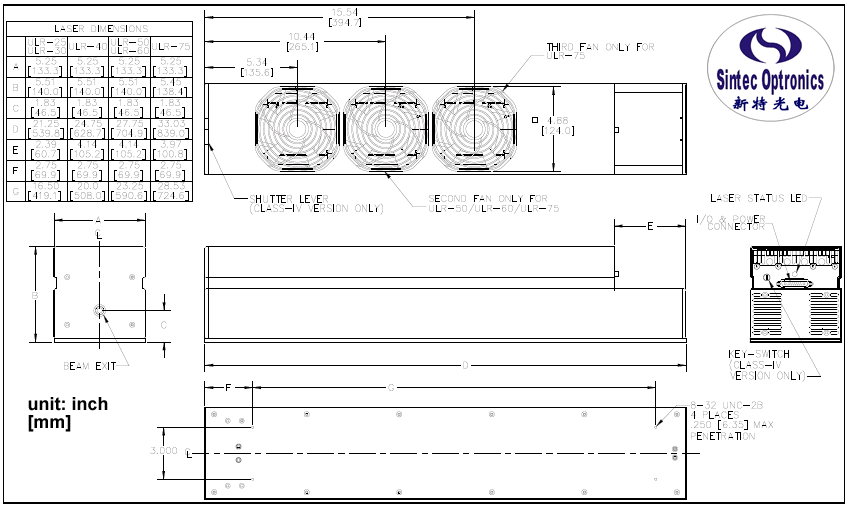

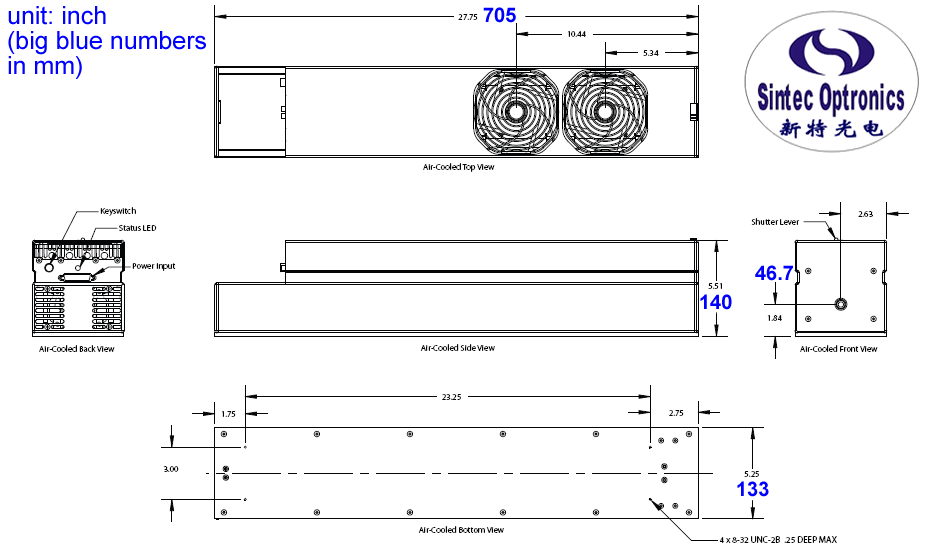

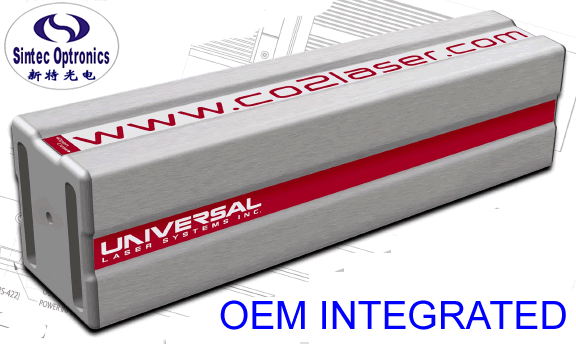

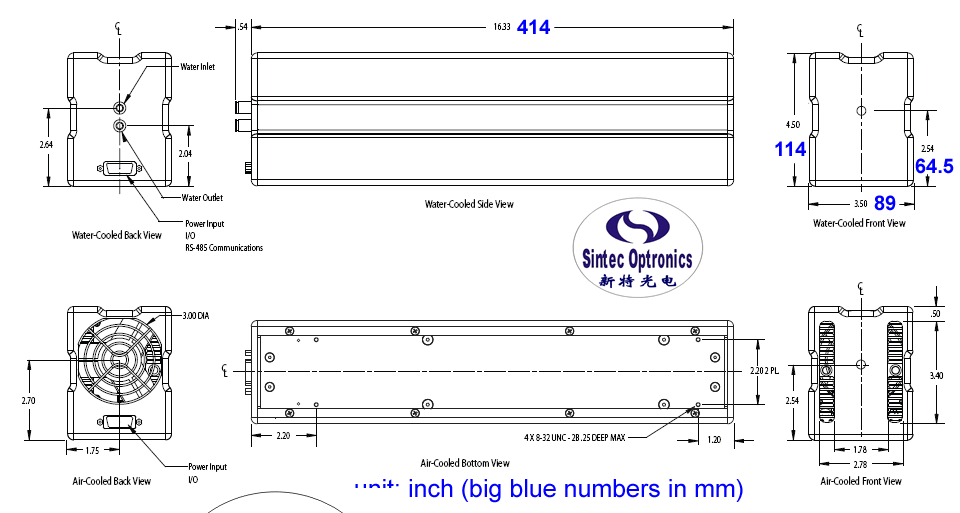

ULR OEM INTEGRATED air-cooled

ULR OEM INTEGRATED water-cooled

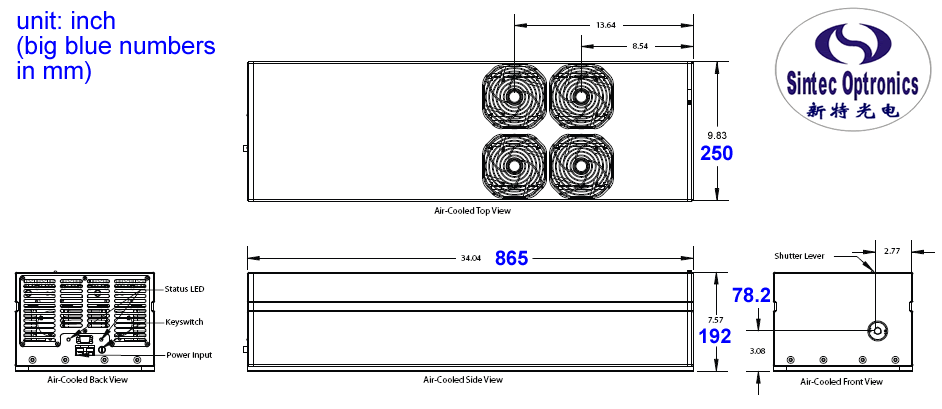

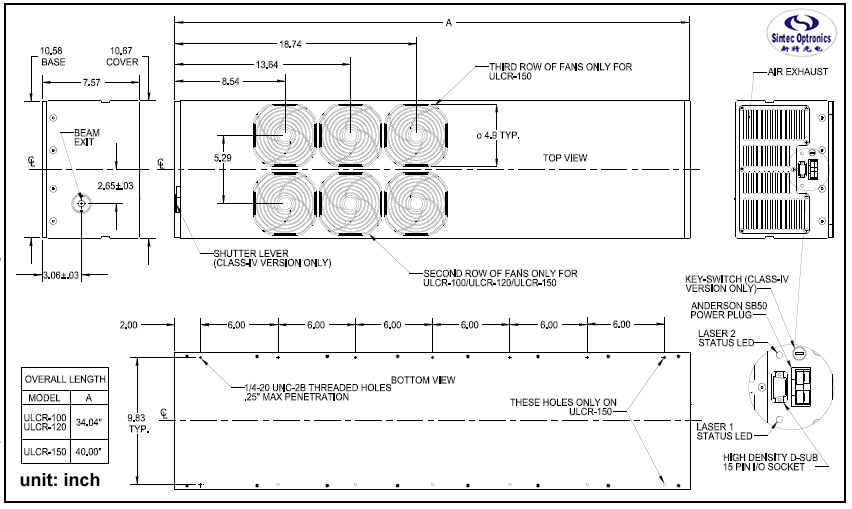

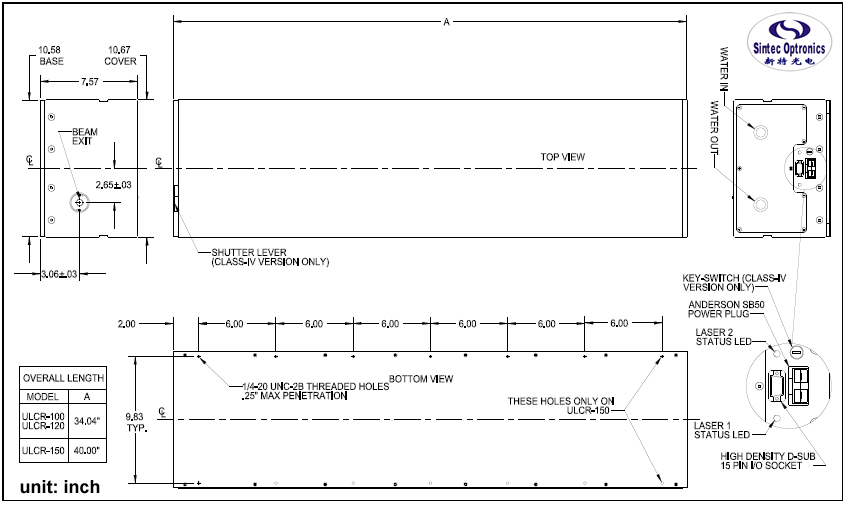

ULCR OEM air-cooled

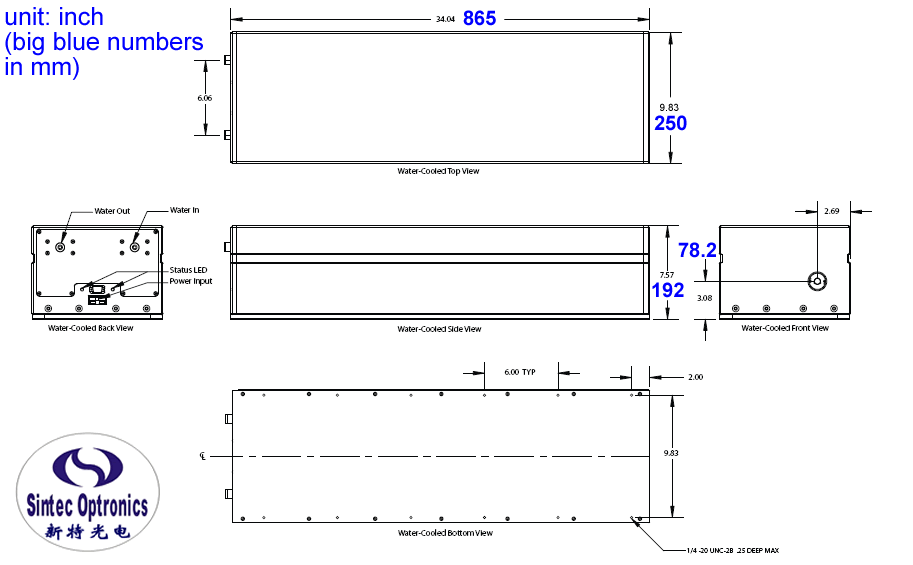

ULCR OEM water-cooled

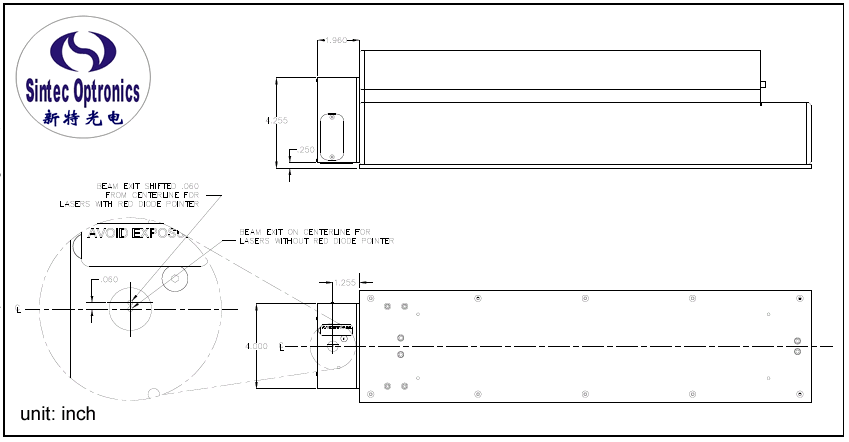

ULR with 90 degree

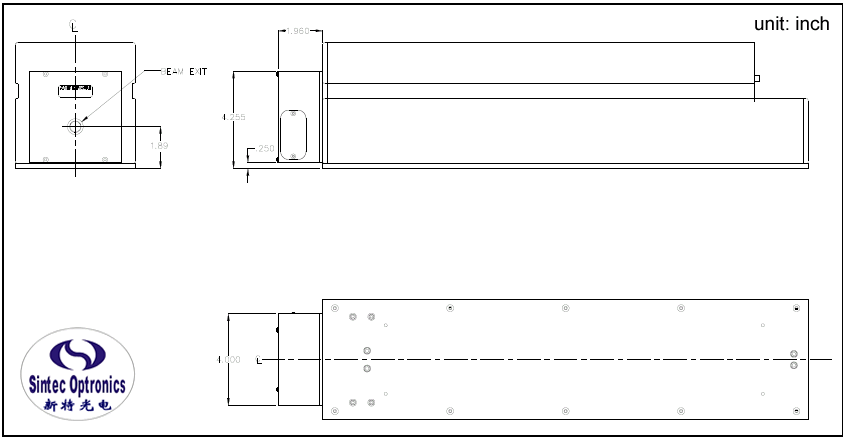

ULR with 90 degree and red pointer



Beam Output Configuration:

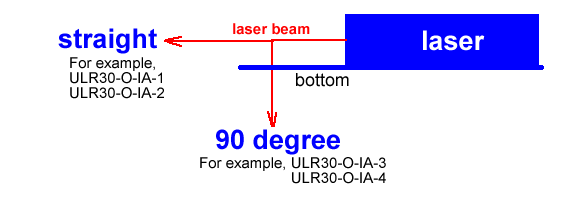

With the 90 degree output the beam goes through the base plate. We cut a hole in the bottom and mount it to the face of the laser, turn it 90 degree down through the hole. We can not offer it in any other direction but through the bottom of the base plate. To offer this option on OEM lasers the beam output number is (#3) for 90 degree without pointer, (#4) for the 90 degree with pointer. This option is not offered on 10W Integrated air cooled due to the small base plate and no room to mount the out put.



CO2 laser power controller   DC-excited CO2 lasers      High power CO2 lasers

Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113

E-mail: sales@sintec.sg sales@SintecOptronics.com

URL: http://www.sintec.sghttp://www.SintecOptronics.com

For more and updated information, please go to our New Websites.
