Portable
Laser Marking System |
|
|
The gross weight of a
common laser marking machine is about 400kg and it is not easy to move.
If you want to mark some products
or workpieces, you have to do this in the workshop because the machine
is always fixed there. If the products or workpieces are huge and heavy,
it is very difficult to move them from a place to another. For
facilitating the marking job, we have developed a new generation laser
marking machine----Portable Laser Marking System, which is compact in
size and light in weight. It is convenient to move this machine to
anywhere. What you need to do is just to connect it with a computer and
turn on the power supply, then you can mark your products or workpieces
as you want.
|
|
|
-
compact in size
-
light in weight
-
convenient to move
- Don’t
use any ink and marking is permanent.
|
|
There
are 3 types of Portable Laser Marking Machines:
Portable CO2 Laser
Marking Machine, Portable Fibre Laser Marking Machine and Portable Diode
Pumped Laser Marking Machine. |
|
|
|
1. Portable
CO2 Laser Marking Machine |
|
|
|
In a portable CO2 laser marker, CO2 laser,
marking head and relevant electrical
controller are assembled together as a whole unit. |
|
|
 |
|
|
|
Model |
M-UL-10P |
M-UL-30P |
|
Laser wavelength |
10.6um |
10.6um |
|
Laser power |
10W |
30W |
|
Mark
linewidth |
0.15mm |
0.15mm |
|
Marking
field |
50x50 - 250x250mm |
50x50 - 250x250mm |
|
Marking speed |
<5m/sec |
<5m/sec |
|
Weight |
20kg |
24kg |
|
Electric |
200VAC, 50Hz |
200VAC, 50Hz |
|
|
|
|
2. Portable
Diode Pumped Laser Marking Machine |
|
|
|
Air-cooled
end diode-pumped Nd:YAG lasers F-2 and F-3 are
used in the machines. The machine consists of a laser head
with marking head and a
control box. |
|
|
 |
|
|
 |
|
|
|
a) Laser Source |
|
Model |
MARK F-2 |
MARK F-3 |
M-DPSS-F2P |
M-DPSS-F3P |
|
Laser wavelength |
1064 nm |
1064nm |
1064 nm |
1064nm |
|
Average power |
10 W |
20 W |
10 W |
20 W |
|
Repetition rate |
20-100 KHz |
20-100 KHz |
20-100 KHz |
20-100 KHz |
|
Aiming beam |
Red laser diode |
Red laser diode |
Red laser diode |
Red laser diode |
|
Stability |
± 3% (8 hours) |
± 3% (8 hours) |
± 3% (8 hours) |
± 3% (8 hours) |
|
Pulse width@ 20kHz |
<10 ns |
<10 ns |
<10 ns |
<10 ns |
|
Beam diameter |
6 mm |
6 mm |
6 mm |
6 mm |
|
Dimensions(LxWxH) |
200x120x120mm |
200x120x120mm |
200x120x120mm |
200x120x120mm |
|
Weight |
5kg |
5kg |
5kg |
5kg |
|
Power supply |
100-240VAC,4-2A |
100-240VAC, 9-4A |
100-240VAC, 4-2A |
100-240VAC, 9-4A |
|
Control box |
446x418x150mm |
446x418x150mm |
446x418x150mm |
446x418x150mm |
|
Weight |
12kg |
12kg |
12kg |
12kg |
|
|
|
|
b) Marking Head and
Marking Software |
|
Model |
MARK F-2 |
MARK F-3 |
M-DPSS-F2P |
M-DPSS-F2P |
|
Type |
Galva based 2-axial
scanner |
LS-1064-12-110 (Galva
6231C) |
|
Focal length |
160mm |
160mm |
|
Marking field |
110x110mm |
110x110mm |
|
Marking speed |
500 characters/s (1mm
high) |
500 characters/s (1mm
high) |
|
Dimension(LxWxH) |
167x135x213mm |
200x140x130mm |
|
Weight |
3kg |
4.5kg |
|
Marking software |
Windows XP/2000 |
LMS series or LMC series software
based on Windows XP/2000 |
|
|
|
|
3.
Portable Fibre Laser Marking Machine |
|
|
|
The machine consists of a
laser head with marking head and a control box, similar to portable end
diode-pumped Nd:YAG laser markers. |
|
|
|
Model |
M-YPL05/80/10 |
M-YLP05/100/20 |
M-YLP10/100/20 |
|
Laser Head |
|
Laser type |
Fiber laser |
Fiber laser |
Fiber laser |
|
Laser model |
YPL.5/80/10 |
YLP .5/100/20 |
YLP 1/100/20 |
|
Mode of operation |
pulse |
Pulse |
Pulse |
|
Beam quality M2 |
1.4 |
1.4 |
1.5 |
|
Polarization |
Random |
Random
|
Random |
|
Laser wavelength
(nm) |
1060 |
1060 |
1062 |
|
Laser power (W) |
5 |
10.5 |
20 |
|
Pulse energy (mJ) |
0.5 |
0.5 |
1.0 |
|
Repetition rate
(kHz) |
10-80 |
20-80 |
20-80 |
|
Pulse duration
(ns) |
80 |
100 |
105 |
|
Output power
instability (%) |
2 |
2 |
2 |
|
Fiber cable
length (m) |
5 |
5 |
1.5 |
|
Beam diameter
(mm) |
8-13.5 |
8-13.5 |
6-9 |
|
Beam divergence (mrad) |
0.3 |
0.3 |
|
|
Cooling method |
Air
|
Air |
Air |
|
Marking Head |
|
Scanner |
High-speed
optical galvanometers |
|
Marking field |
100x100 mm(others
available upon request) |
|
Max marking speed |
300
characters/second or 10m/s |
|
Marking line |
Min. 0.05mm |
|
Marking software |
|
Various fonts,
pictures (PLT, BMP), automated series numbers, barcodes,
DataMatrix |
|
Options |
|
XYZ stage |
|
|
|
 OEM CO2 Laser Marker
OEM DPSS Laser Marker

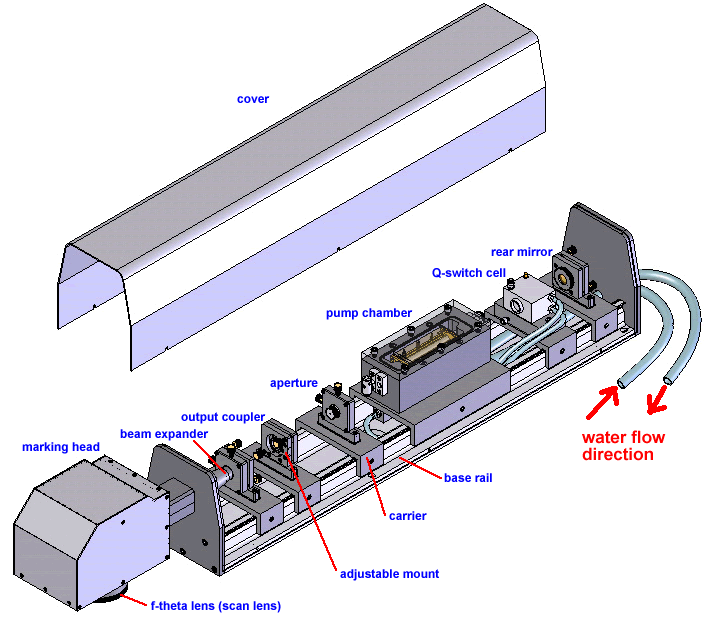

OEM Lamp-pumped Laser Marker |
