OEM Lamp-pumped Nd:YAG Laser Markers

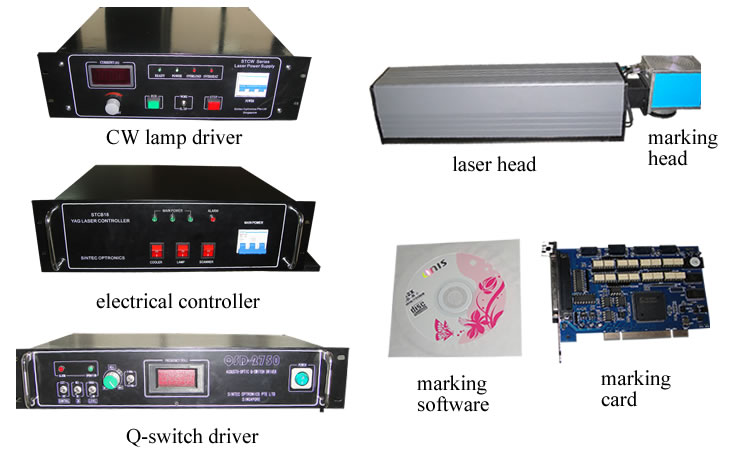

We can provide OEMs and system integrators with a range of high performance components and sub-assemblies of Nd:YAG laser markers at more attractive prices. These components and sub-assemblies are laser head (pump chamber with Nd:YAG rod and lamp, laser resonator, Q-switch cell, optional beam expamder), Q-switch driver, lamp driver, electrical controller, marking head, marking software, chiller, stage.


Model Number

Description

Option

M-YAG-50OEM

50W laser marker, including laser head with mark head LSCT-1064-12-110-6231, lamp driver STCW22A, Q-switch driver QSD2750, electrical controller STCB18, LMX-1 marking card and marking software

chiller ST-LW52-BHP

M-YAG-75OEM

75W laser marker, including laser head with mark head LSCT-1064-12-110-6231, lamp driver STCW22A, Q-switch driver QSD2775, electrical controller STCB18, LMX-1 marking card and marking software

chiller ST-LW72-BHP

M-YAG-100OEM

100W laser marker, including laser head with mark head LS-1064-12-110-6231, lamp driver STCW32A, Q-switch driver QSD27100, electrical controller STCB18, LMX-1 marking card and marking software

chiller ST-LW72-BHP

  Remark: marking head LSST can be used to replace marking head LSCT at much lower prices.


1. Laser Head with Marking Head


A laser head consists of laser base (optical rail), pump chamber with a lamp and a YAG rod, output coupler and rear mirror with mounts,  front plate, rear plate, and cover. Options include aperture, AO Q-switch cell and beam expander with mount.

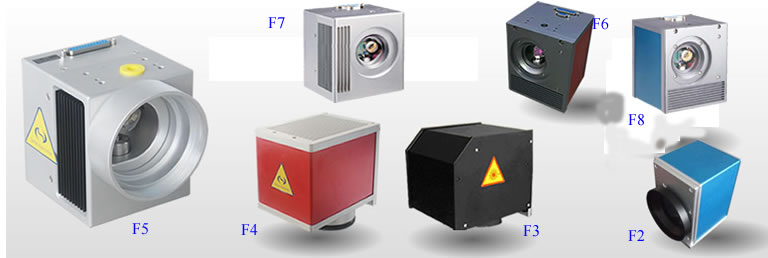

A laser marking head consists of scan mirrors, galvanometers & drive cards, galvanometer mount, scan lens (f-theta lens), marking card (PCI slot) and marking software (under Windows XP).




2. Q-switch Driver

The panel is standard 19 inch.


3. Lamp Driver


The panel is standard 19 inch.

4. Electrical Controller

Including DC power supply of the marking head, replays, buttons, indicators, alarms etc.


5. Chiller


Dimensions of OEM Laser Marker:

laser head and marking head: 1120*170*180mm

controller: 483*500*135mm

Lamp driver: 483*500*135mm

Q-switch driver: 483*90*350mm


 Pack Information

There are two wooden boxes. One box includes laser head and marking head and another includes controller, lamp driver and Q-switch driver. Their pack dimensions and weights are roughly as follows:

580x530x630mm, 52kg;       1310x300x900mm, 45kg.

Integrated Lamp-pumped Nd:YAG Laser Marker        OEM DPSS Laser Marker
Download datasheet "Nd:YAG Laser marking systems" in PDF
