OEM Diode-pumped Solid-State Laser Marker |
|||||||||
|
We can provide OEMs and system integrators with a range of high performance components and sub-assemblies of diode-pumped Nd:YAG laser markers at more attractive prices. These components and sub-assemblies include laser head (diode pump module, laser resonator, Q-switch cell), Q-switch driver, diode driver, marking head, marking software, chiller, stage. |
|||||||||
|
|||||||||
 |
|||||||||

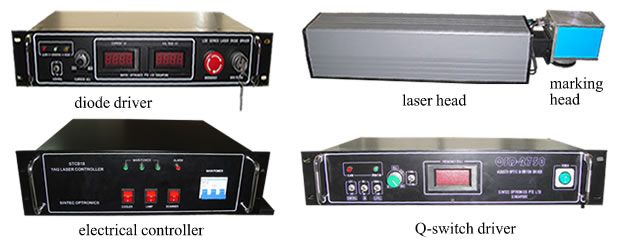

| 1) Laser Head with Marking Head | |||||||||
|
A laser head consists of laser base (optical rail), pump module, output coupler and rear mirror with mount, beam expander, AO Q-switch cell, front plate, rear plate, and cover (option: aperture with mount). A laser marking head consists of scan mirrors, galvanometers & drive cards, galvanometer mount, scan lens (f-theta lens), D/A card (PCI slot), marking software (under Windows XP) and DC power supply. |
|||||||||
 |
|||||||||
| 2. Q-switch Driver | |||||||||
| The panel is standard 19 inch. | |||||||||
 |
|||||||||
|
3. Diode Driver |
|||||||||
|
The panel is standard 19 inch. |
|||||||||
 |
|||||||||
| 4. Electrical Controller | |||||||||
| Including DC power supply of the marking head, replays, buttons, indicators, alarms etc. | |||||||||
 |
|||||||||
|
5. Chiller |
|||||||||
 |
|||||||||
|
Typical Applications: |
|||||||||
| 1. Laser marking of metal & non-metal materials and products: stainless steel, copper, aluminum alloy, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper, scissors, |
