Diode Laser Driver (Laser Diode Driver, Diode Driver)

The laser diode driver LDD-AAVV-T is a high current-constant laser diode driver with a thermo-electric cooler controller. Current control, transient suppression, over-temperature protection, short circuit protection, and over current limit are provided. A temperature sensor is used to measure the temperature of the laser diode and then the constant-temperature is kept by automatically adjusting the current of the thermo-electric cooler.


Specifications:
Model:  LDD-AAVV-T

             LDD - laser diode driver

                AA - maximum output current (A). Max is 60A and it is continuously adjustable.

                VV - maximum output voltage (V). Max is 60V and it is continuously adjustable.

                T -  with a thermal electronic cooler TEC1-12714 & power supply

Input voltage: 220VAC, +/-15% (110VAC available upon request)

Voltage noise: <0.1% p-p

Current noise: < =50mA

Un-stability: <0.1%

Weight: LDD-AAVV: 6.5kg; LDD-AAVV-T: 15kg
Dimension: LDD-AAVV: 482x133x520mm; LDD-AAVV-T: 482×88x260mm
LDD-AAVV

LDD-AAVV-T

Examples of Selections:

  1. 20W diode-laser pump module, RBA20-0.66C2, required 12VDC, 30A, recommend LDD4012(30A, 12V)

  2. 50W diode-laser pump module, RBA30-1C2, required 18VDC, 30A, recommend LDD3020(30A, 18V)

  3. 75W diode-laser pump module, RBA34-1C2, required 24VDC, 30A, recommend LDD3024(30A, 24V)

  4. 20W diode laser, required 2VDC, 40A & TE cooler, recommend LDD4002T(40A, 2V)

  5. 30W diode laser, required 2VDC, 50A & TE cooler, recommend LDD5002T(50A, 2V)

  6. 60W diode laser, required 4VDC, 50A & TE cooler, recommend LDD5004T(50A, 4V)

  7. 110W diode laser, required 8VDC, 50A & TE cooler, recommend LDD5008T(40A, 2V)
Schematic Drawing of LDD-AAVV Series Drivers

Front panel                Rear panel

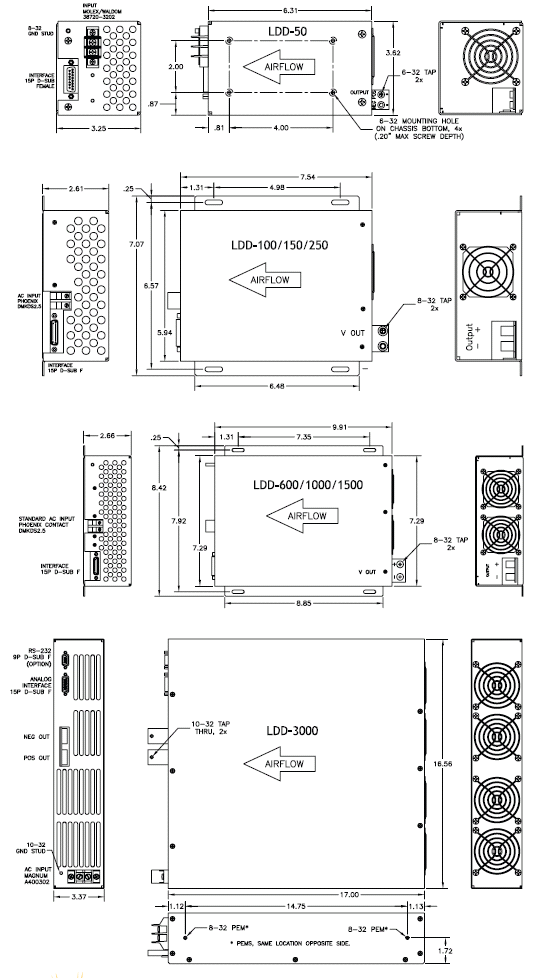

LDD Series CW OEM Laser Diode Drivers


The LDD series is a new family of OEM laser diode drivers designed for the emerging high power laser diode industry. The LDD series is ideal for high power applications where economy is important and performance cannot be compromised.



Compact size is possible due to the low-loss Zero Voltage Switching inverter and incorporation of planar magnetics.  The LDD is virtually wire free.



Power factor is greater than 0.99 and conducted emissions meet stringent European regulations. No additional line filter is required to meet EN 55011 emission requirements.



The LDD family has been designed with the knowledge that a high power laser diode is an expensive device. Rise and fall times are strictly controlled to reduce high voltage transients which could damage the laser diode.



ADVANTAGES

l         Ideal for OEM applications Safe turn-on/turn-off Compact design

l         Power factor correction

l         Auxiliary +15V/-15V/+5V

l         Low conducted emissions, low leakage

l         ROHS Compliant



AVAILABLE POWER OUTPUTS ARE:

l         50W

l         100W

l         150W

l         250W

l         600W

l         1000W

l         1500W

l         3000W

l         Output current up to 150A



Model

Poutmax

Ioutmax

Input Voltage

Size (L x W x H)

LDD-50-XX-YY

50W

Up to 15A

90-264VAC

6.75” x 3.63” x 3.25”

17.1 x 9.2 x 8.26 cm

LDD-100-XX-YY

100W

5A to 50A

90-264VAC

7.5” x 5.8 x 2.6”

19 x 14.7 x 6.6 cm

LDD-150-XX-YY

150W

10A to 60A

90-264VAC

LDD-250-XX-YY

250W

10A to 80A

90-264VAC

LDD-600-XX-YY

600W

10A to 100A

90-264VAC

9.9” x 7.3” x 2.6”

25.1 x 18.5 x 6.6 cm

LDD-1000-XX-YY

1000W

10A to 100A

90-264VAC

LDD-1500-XX-YY*

1500W

10A to 100A

180-264VAC

LDD-3000-XX-YY*

3000W

Up to 150A

180-264VAC

17” x 16.6” x 3.4”

43.2 x 42.2 x 8.6 cm

Auxiliary Outputs:

+5V @ 0.25A**





+15V @ 0.25A**





-15V @ 0.25A**





**(no auxiliary outputs available on LDD-50.)



XX = Maximum rated output current YY = Maximum compliance voltage



XX*YY cannot exceed Poutmax



*LDD-1500 and LDD-3000 require AC input voltage between 180-264VAC



RS-232 Option available



Other outputs available upon request




INPUT

l         Voltage: See table above

l         Power Factor: >.98



INTERFACE

l         Connector: 15 Pin “D” Sub Female

l         Current Program: 0-10V for 0-Max Current

l         Current Monitor: 0-10V for 0-Max Current

l         Voltage Monitor: 0-10V for 0-Max Voltage



PERFORMANCE

l         Rise/Fall Time: <1msec standard (10% to 90% Full Current) (<350usec available upon request)

l         Current Regulation: <0.5% of Maximum output current

l         Current Ripple: <0.5% of maximum output current

l         Current Overshoot: <1% of maximum output current

l         Power Limit: Limited to maximum power with power fold-back circuit



ENVIRONMENT

l         Operating Temp: 0 to 40°C

l         Storage: -20 to 85°C

l         Humidity: 0 to 90% non-condensing

l         Cooling: Forced air



REGULATORY

l         Safety: LDD-150/250: UL60950

l         LDD-600/1000/1500: UL60950 (Industrial), UL60601-1 (medical)

l         Emissions/Immunity: FCC 47 CFR Class A Emissions, EN55011:1998 Group 1 Class A Emissions,

EN61000-3-2, EN61000-3-3, EN60601-1-2:2001


LDD Interface

CONNECTOR TYPE: 15 PIN D-SUB FEMALE

(Refer to Figure 2, LDD Interface Schematic)

Pin #

Pin Name

Functional Voltage Level

Description

1

Enable (input)

High=RUN=+5V to +15V Low = OFF = 0V

The Enable function turns the output section of the power supply ON and OFF. When the power supply is enabled, current is delivered to load as programmed via Iprogram(+), Pin 7. Rise times resulting from Enable are approximately 25msec.

3

Interlock (input)

Open = OFF Connect to GND = RUN

The Interlock function can be connected to exter-nal interlock switches such as door or overtemp switches.

4

GND



Interface return.

5

*Vout Monitor: (output)

0-10V = 0-Voutmax

The output voltage of the supply can be monitored by Vout Monitor. See note below

6

Iout Monitor (output)

0-10V = 0-Ioutmax

The output current of the supply can be monitored by Iout Monitor.

7

Iprogram(+): (input)

0-10V = 0-Ioutmax

The power supply output current is set by applying a 0-10V analog signal to Iprogram(+).

8

Pulse Control (input)

(LDD-3000 only)

TTL High = On

TTL Low = OFF

Default = On (LDD-3000 only)

The output of the LDD-3000 may be pulsed by applying a TTL signal to Pulse Control, pin 8. The amplitude of the output current pulse is deter-mined by the current level programmed via Pin 7, Iprogram(+). Rise fall times of <1msec are typical. Contact Lumina Power for faster rise and fall times. If left unconnected, the default will be ON for CW operation.

9

GND



Interface return.

10,11

+5V @ 0.25A



Auxiliary +5V power supply for user. Up to 0.25A output current capability. (not available on LDD-50)



(output)





12

-15V @0.25A (output)



Auxiliary -15V power supply for user. Up to 0.25A output current available. (not available on LDD-50)

13,14

+15V @0.25A (output)



Auxiliary +15V power supply for user. Up to 0.25A output current available. (not available on LDD-50)

15

GND



Interface return.

* If maximum compliance voltage is less than 10V, Vout Monitor will read output voltage directly. If maximum compliance voltage is greater than 10V, then Vout Monitor will be scaled such that 0-10V = 0-Voutmax.

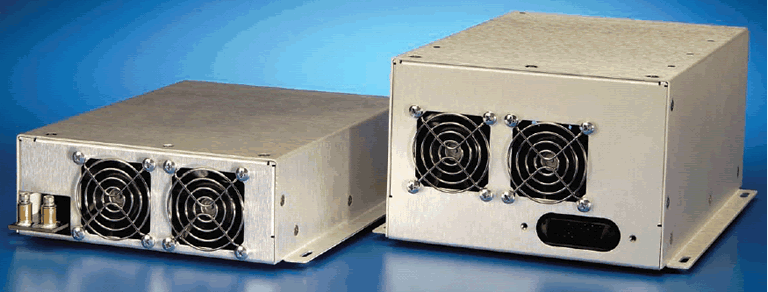

LDQCW Series OEM Diode Laser Drivers



The LDQCW series is a new family of OEM diode laser pulsars designed for the emerging high power diode laser industry.



Lumina Power LDQCW diode drivers can be configured for compliance voltage requirements up to 100V.

Maximum efficiency is realized with circuitry that minimizes losses across the output pulsing circuit. Compact size is possible due to the low-loss Zero Voltage Switching inverter and incorporation of planar magnetics.



Leakage current is less than 250uA, power factor is greater than 0.99 and conducted emissions meet stringent European regulations. No additional line filter is required to meet EN 55011 emission requirements.



ADVANTAGES

l         <25uSec rise/fall times

l         200A pulsing capability

l         Power factor correction

l         Auxiliary +/-15V outputs

l         Compliance voltage capability up to 100V

l         Ideal for OEM applications

l         ROHS Compliant



AVAILABLE POWER OUTPUTS ARE:

l         LDQCW-50: 50Wavg

l         LDQCW-250: 250Wavg

l         LDQCW-600: 600Wavg

l         Pulsed output current up to 200A



Model

Poutmax

Ioutmax

Input Voltage

Size (L x W x H)

LDQCW-50-XX-YY-ZZ

50W

120Amax

90-264VAC

9.9” x 7.3” x 2.6”

25.2 x 18.6 x 6.6 cm

LDQCW-250-XX-YY-ZZ

250W

200Amax

90-264VAC

10.9” x 7.3” x 4.81”

27.2 x 18.5 x 12.2 cm

LDQCW-600-XX-YY-ZZ

600W

200Amax

90-264VAC

XX = Maximum pulsed output current

YY = Required compliance voltage (unit will drive a load between 75% and 100% of this voltage)

ZZ = Maximum pulse width at maximum pulsed output current -specified by customer

Note 1: Average power must not exceed Poutavg

Note 2: Output current and voltage compliance can be configured for individual requirements

Auxiliary Outputs: +/-15V @ 0.25A (Auxiliary output on LDQCW-50: +12V @50mA)

Other configurations available upon request



INPUT

l         Voltage: See table above

l         Power Factor: >.98



OUTPUT

l         Poutavg See table above

l         Ipulsemax 200Apeak

l         Iavgmax 80A

l         Vcompliancemax Configurable up to 100V



INTERFACE

l         Interface Connector: 15 Pin “D” Sub Female

l         Pulse Enable: +5V TTL to +15V CMOS

l         Current Program: 0-10V for 0-Ioutmax

l         Current Monitor: 0-10V for 0-Ioutmax

l         Voltage Monitor: 0-10V for 0-Voutmax

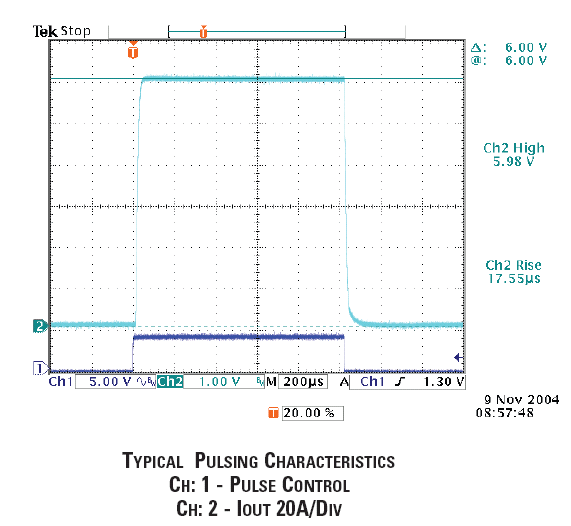

PERFORMANCE

l         Pulse Width Range: 50usec to 2msec

l         Max Rep Rate: 10kHz

l         Rise/Fall Time: <25uSec

l         Current Regulation: 1.0% of Maximum output current

l         Current Ripple: <0.5% of maximum output current

l         Current Overshoot: <5% of maximum output current

l         Power Limit: Limited to maximum average power

l         with power fold-back circuit



ENVIRONMENT

l         Operating Temp: 0 to 40°C

l         Storage: -20 to 85°C

l         Humidity: to 90% non-condensing

l         Cooling: Forced air



REGULATORY

l         Safety: Compliant with UL60950

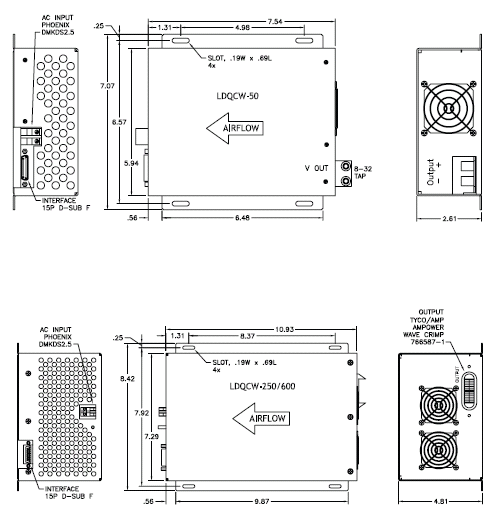

MECHANICAL

l         Dimensions: See table above

l         Input Power Connector: Phoenix DMKDS 2,5

l         Terminal Block

l         Output Connector: Ampower Wavecrimp

l         Connector #765608-1

l         (Strip Line system)



LDQCW Interface



LQCW-250/600-XX-YY-ZZ INTERFACE



LDQCW-50-XX-YY-ZZ INTERFACE
