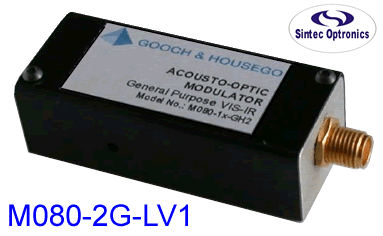

Free-space AO Modulator (Acousto-Optic Modulator)

M080-2G-LV1

• High efficiency (95% typical)

• Low drive power (0.3W typical)

• Compact

• Easy to align

Description

The M080-2G-LV1 is a compact AO Modulator specifically designed for extra-cavity modulation of Nd:YAG/Nd:YVO4 lasers where fast modulation is not critical.

Rise times down to 10μs are readily achievable, together with excellent efficiency, typically > 95% for a well-collimated laser beam.

The relatively wide field of view means that good efficiency is achieved for more divergent beams.

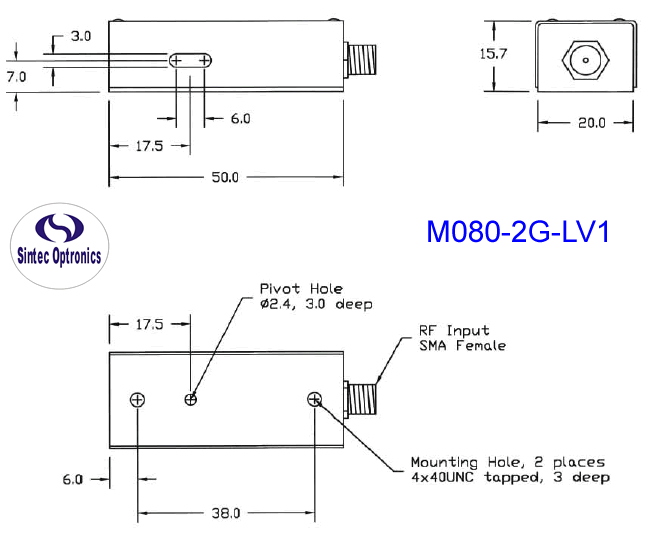

Specification

Interaction Material: TeO2

Wavelength: 1064nm

Anti-Reflection Coating: < 0.3% per surface

Polarisation Alignment: ±5°

Frequency: 80MHz

Input Impedance: 50Ω

Acoustic Mode: Slow Shear

Active Aperture: 2.0 x 5.0mm

Clear Aperture: 4.0 x 5.0mm (min)

Recommended Beam Diameter: 1mm

Input Polarisation: Linear - vertical to base

Diffracted Beam Polarisation: Linear - rotated by 90°
                             wrt input

Diffraction Efficiency: > 90%

RF Connector: SMA Female

RF Power: 0.5W

RF Driver Model No.: N21080-1DM and N21080-1AM
