AO
Modulator
M040-8J-FxS
Description

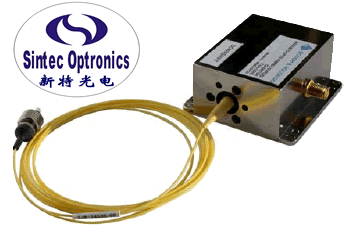

A
fibre-coupled acousto-optic modulator and frequency shifter for use in
telecommunications. Optimised for low insertion loss at 1550nm, the use
of chalcogenide glass provides essentially no polarisation sensitive
loss or polarization mode dispersion. Very high extinction ratio and
rise-time make this device suitable for all-optical switching and
re-routing applications.
In
addition to the two fibre version, a three fibre model allows both zero
and first order output beams to be utilised. |
|
|
|
Interaction
Material
|
Chalcogenide
Glass
|
|
|
Wavelength
|
1550nm
|
|
Polarisation
Dependant Loss
|
None
|
|
Polarisation
Mode Dispersion
|
None
|
|
Insertion
Loss
|
M040-8J-F2S
< 2.4dB (first order)
|
|
M040-8J-F3S
< 3.0dB (zero and first order)
|
|
Extinction
Ratio (1st order on/off)
|
>
50dB
|
|
Rise-Time
/ Fall-Time
|
110ns
|
|
Frequency
|
40MHz
|
|
VSWR
|
<
1.2:1 (50Ω
input
impedance)
|
|
RF
Power
|
0.2W
typical
|
|
Frequency
Shift
|
-40MHz,
down shift
|
|
Fibre
Type
|
Single
mode, 2m
|
|
Fibre
Connectors
|
FC
/ PC, Seiko-Geiken
|
|
|
|
|
Options |
|
Wavelength
|
1310nm,
1520 to 1580nm
|
|
Frequency
Shift
|
+40MHz,
up shift
|
|
Fibre
Type
|
Polarisation
maintaining, multimode
|
|
Fibre
Connectors
|
Pig-tails
for splicing, FC / APC
|
|
|
|
|
Driver
Selection
Digital
Modulation: A118, N21040-0.4DM
Analogue
Modulation: A025, N21040-0.4AM |
