PARAMETER

SPECIFICATION

Output Frequency

80.000 MHz + 0.01% Quartz Stabilized

Spurious Levels

-50 dBc Maximum

Harmonic Distortion

-15 dBc Maximum

Analog Input

+ 1 Volt into 50 Ohms (+ 1 Volt = Full RF Power; 0 Volt = Minimum RF Power)

Extinction Ratio

50 dB Minimum

RF Rise

20 ns Maximum

PRF

10 to 90 %

Fall Time

20 ns Maximum

PRF

90 to 10 %

RF Output Power

2 Watts Nominal, Adjustable, Factory Set for Optimum Performance When Paired with a NEOS AO Device.

Output Impedance

50 Ohms Nominal

Supply Voltage

+ 24 VDC + 0.5 Volt

Supply Current

1 Amp Maximum

MAXIMUM RATINGS

Supply Voltage

+ 28 Volts

Power Output

No DC Feedback Allowed

Case Temperature

+ 55⁰C. The Driver Must Be Attached to an Adequate Heatsink.

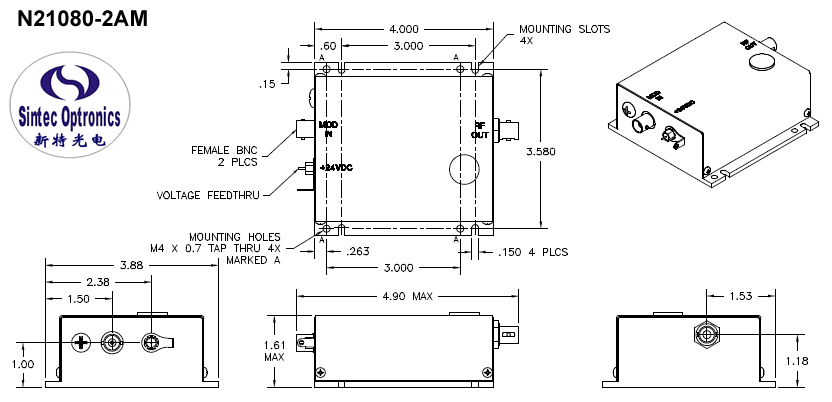

CONNECTORS & MECHANICAL

RF Output Connector

BNC Female

Modulation Input Connector

BNC Female

Power Supply Connections

Vcc: Solder Post; Return: Ground Lug

Physical Size

4.8" L x 1.61" H x 3.87" W
